8. For the circuit below determine and plot the normalized Bode plot. Show the equations used for all relevant frequenci

Post by answerhappygod »

8 For The Circuit Below Determine And Plot The Normalized Bode Plot Show The Equations Used For All Relevant Frequenci 1
8 For The Circuit Below Determine And Plot The Normalized Bode Plot Show The Equations Used For All Relevant Frequenci 1 (66.08 KiB) Viewed 21 times

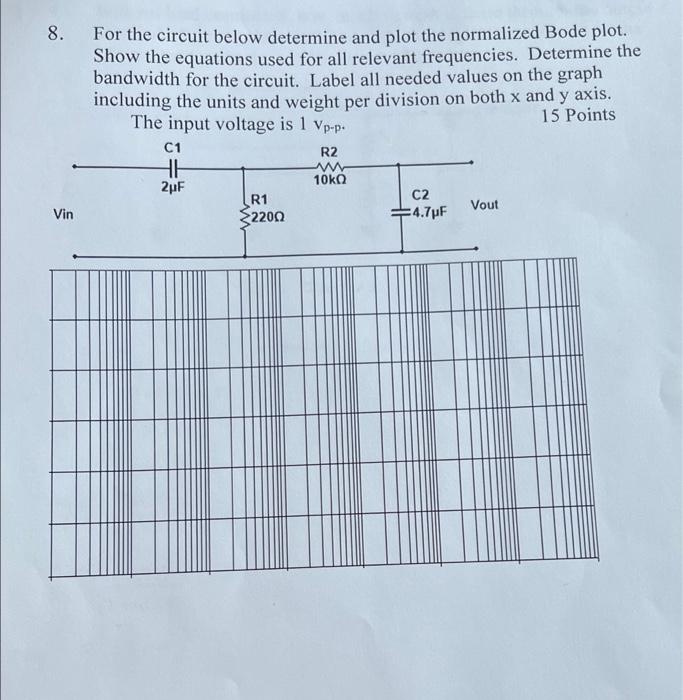

8. For the circuit below determine and plot the normalized Bode plot. Show the equations used for all relevant frequencies. Determine the bandwidth for the circuit. Label all needed values on the graph including the units and weight per division on both x and y axis. The input voltage is 1 Vp-p. 15 Points C1 HE 2UF R1 C2 Vin 2200 -4.7F R2 w 10kΩ Vout
