5. A microstrip line has a width of 352 um and is constructed on a substrate that is 500 um thick with a relative permit
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
5. A microstrip line has a width of 352 um and is constructed on a substrate that is 500 um thick with a relative permit

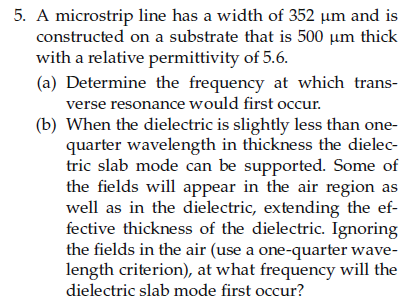

5. A microstrip line has a width of 352 um and is constructed on a substrate that is 500 um thick with a relative permittivity of 5.6. (a) Determine the frequency at which trans- verse resonance would first occur. (b) When the dielectric is slightly less than one- quarter wavelength in thickness the dielec- tric slab mode can be supported. Some of the fields will appear in the air region as well as in the dielectric, extending the ef- fective thickness of the dielectric. Ignoring the fields in the air (use a one-quarter wave- length criterion), at what frequency will the dielectric slab mode first occur?
