3. [10 Points) For the ALU (arithmetic and logic unit) shown below, explain the process of subtraction (A-B) (ALU contro

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

3. [10 Points) For the ALU (arithmetic and logic unit) shown below, explain the process of subtraction (A-B) (ALU contro

Post by answerhappygod »

3 10 Points For The Alu Arithmetic And Logic Unit Shown Below Explain The Process Of Subtraction A B Alu Contro 1
3 10 Points For The Alu Arithmetic And Logic Unit Shown Below Explain The Process Of Subtraction A B Alu Contro 1 (29.9 KiB) Viewed 12 times

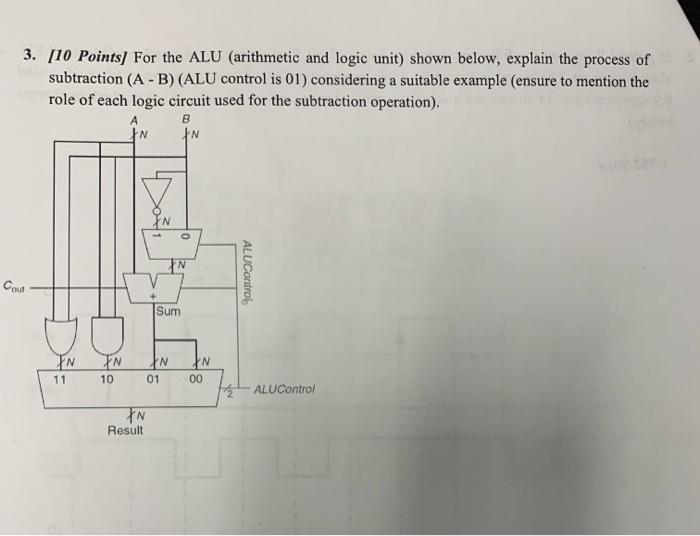

3. [10 Points) For the ALU (arithmetic and logic unit) shown below, explain the process of subtraction (A-B) (ALU control is 01) considering a suitable example (ensure to mention the role of each logic circuit used for the subtraction operation). A 'N B N 'N 0 N ALUControl Cout Sum IN EN 10 LIN 01 'N 00 11 ALUControl 7N Result
