Question 2: [8 Marks) A three-phase transformer bank is to handle 600 KVA and have a 34.5/13.8-KV voltage ratio. Find th

[answerhappygod]

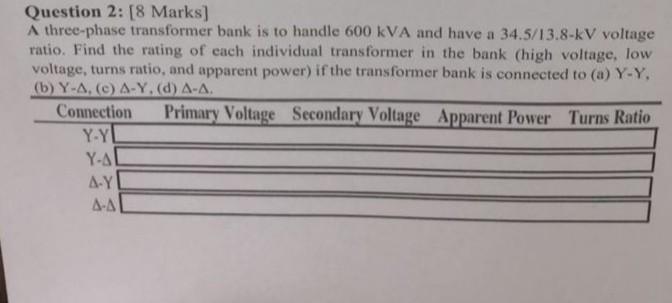

Question 2 8 Marks A Three Phase Transformer Bank Is To Handle 600 Kva And Have A 34 5 13 8 Kv Voltage Ratio Find Th 1 (21.82 KiB) Viewed 28 times

Question 2: [8 Marks) A three-phase transformer bank is to handle 600 KVA and have a 34.5/13.8-KV voltage ratio. Find the rating of each individual transformer in the bank (high voltage, low voltage, turns ratio, and apparent power) if the transformer bank is connected to (a) Y-Y. (b) Y-A,(C) A-Y. (d) A-A. Connection Primary Voltage Secondary Voltage Apparent Power Turns Ratio Υ.Υ Y-A A-Y A-A
