(2) Consider a Si p-n junction solar cell of area 2 cm². The device delivers the maximum load current of 90 mA. If the d

[answerhappygod]

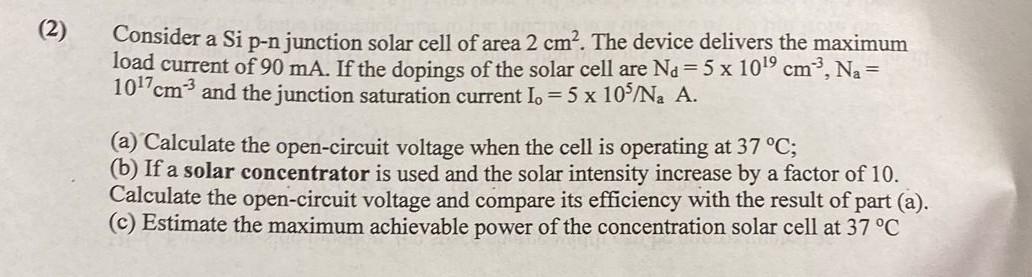

2 Consider A Si P N Junction Solar Cell Of Area 2 Cm The Device Delivers The Maximum Load Current Of 90 Ma If The D 1 (50.27 KiB) Viewed 35 times

(2) Consider a Si p-n junction solar cell of area 2 cm². The device delivers the maximum load current of 90 mA. If the dopings of the solar cell are Nd=5 x 1019 cm", Na= 10'7cmand the junction saturation current Io = 5 x 10ʻ/Na A. a) Calculate the open-circuit voltage when the cell is operating at 37 °C; (b) If a solar concentrator is used and the solar intensity increase by a factor of 10. Calculate the open-circuit voltage and compare its efficiency with the result of part (a). (C) Estimate the maximum achievable power of the concentration solar cell at 37 °C
