OHM'S LAW Lab Report Prepare a Lab Report according to the Laboratory Manual for DC Electrical Circuit Analysis by James

[answerhappygod]

Ohm S Law Lab Report Prepare A Lab Report According To The Laboratory Manual For Dc Electrical Circuit Analysis By James 1 (137.26 KiB) Viewed 9 times

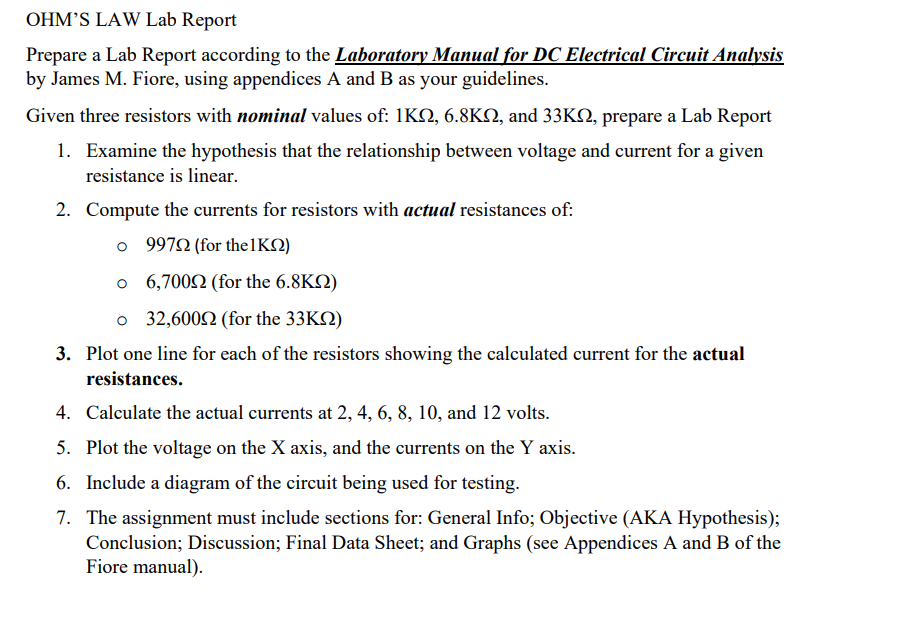

OHM'S LAW Lab Report Prepare a Lab Report according to the Laboratory Manual for DC Electrical Circuit Analysis by James M. Fiore, using appendices A and B as your guidelines. Given three resistors with nominal values of: 1K22, 6.8K2, and 33K12, prepare a Lab Report 1. Examine the hypothesis that the relationship between voltage and current for a given resistance is linear. 2. Compute the currents for resistors with actual resistances of: o 9972 (for the 1K2) o 6,70092 (for the 6.8K22) 0 32,60092 (for the 33K22) 3. Plot one line for each of the resistors showing the calculated current for the actual resistances. 4. Calculate the actual currents at 2, 4, 6, 8, 10, and 12 volts. 5. Plot the voltage on the X axis, and the currents on the Y axis. 6. Include a diagram of the circuit being used for testing. 7. The assignment must include sections for: General Info; Objective (AKA Hypothesis); Conclusion; Discussion; Final Data Sheet; and Graphs (see Appendices A and B of the Fiore manual).
