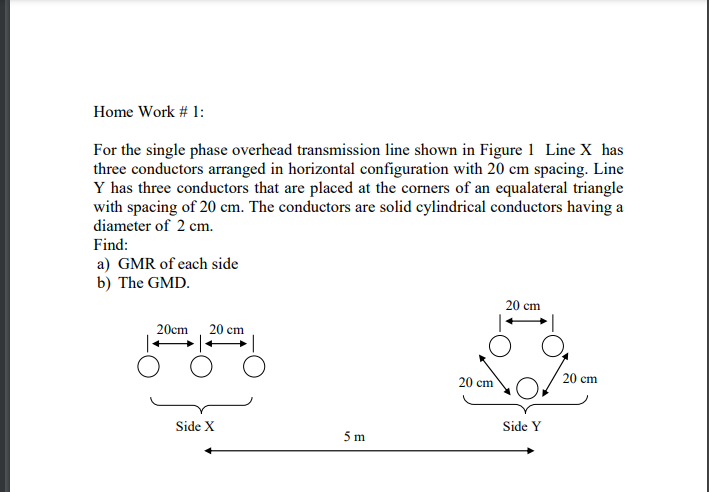

Home Work #1: For the single phase overhead transmission line shown in Figure 1 Line X has three conductors arranged in horizontal configuration with 20 cm spacing. Line Y has three conductors that are placed at the corners of an equalateral triangle with spacing of 20 cm. The conductors are solid cylindrical conductors having a diameter of 2 cm. Find: a) GMR of each side b) The GMD. 20 cm 20cm 20 cm 20 cm 20 cm Side X Side Y 5 m 5 m
