when Gain=20db , bandwidth= 50hz - 15khz what is C5,R2,R3,C3

Post by answerhappygod »

when Gain=20db , bandwidth= 50hz - 15khz
what is C5,R2,R3,C3

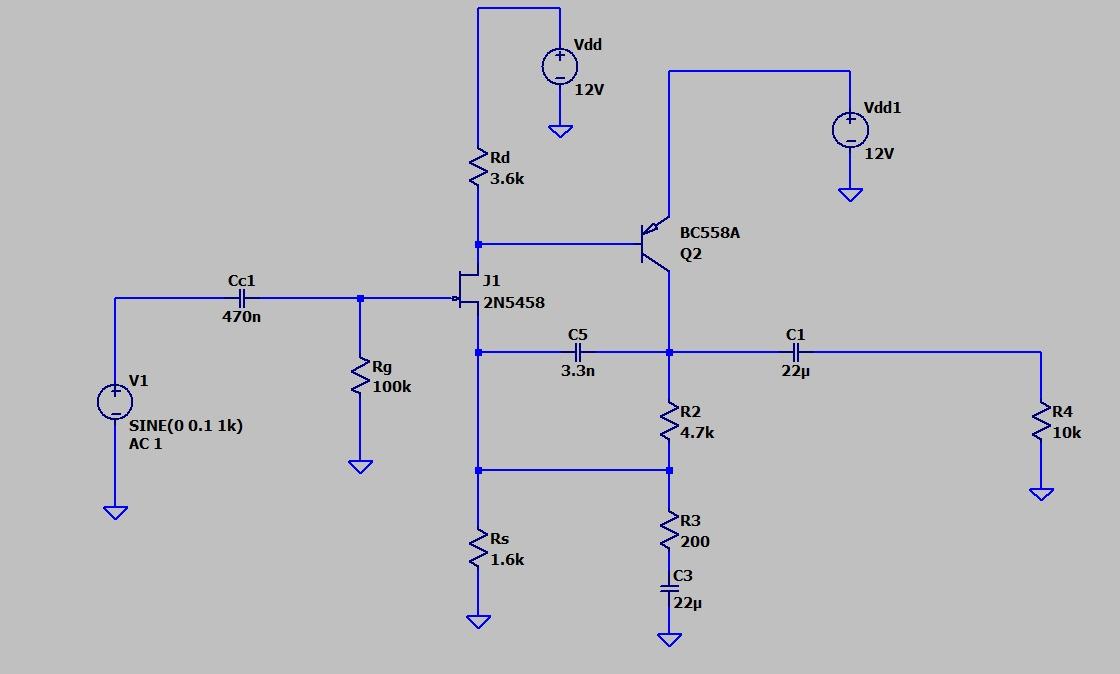

When Gain 20db Bandwidth 50hz 15khz What Is C5 R2 R3 C3 1
When Gain 20db Bandwidth 50hz 15khz What Is C5 R2 R3 C3 1 (37.81 KiB) Viewed 10 times
Vdd 12V Vddi Rd 12V 3.6k BC558A Q2 Cc1 HH 470n J1 2N5458 C5 C1 3.3n Rg 100k 22 v1 | SINE(0 0.1 lk) AC 1 R2 4.7k R4 10k han 美》 + Rs 1.6k R3 200 СЗ 22
