1.64 (a) Assuming the op amp of Fig. P1.64 has ra = 00, a = 10VN, and r, = 0, and all resistances are identical, find Ai

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

1.64 (a) Assuming the op amp of Fig. P1.64 has ra = 00, a = 10VN, and r, = 0, and all resistances are identical, find Ai

Post by answerhappygod »

1 64 A Assuming The Op Amp Of Fig P1 64 Has Ra 00 A 10vn And R 0 And All Resistances Are Identical Find Ai 1
1 64 A Assuming The Op Amp Of Fig P1 64 Has Ra 00 A 10vn And R 0 And All Resistances Are Identical Find Ai 1 (28.81 KiB) Viewed 9 times
If you copy answers from others or answer incorrectly, I will
give you thumbs down.

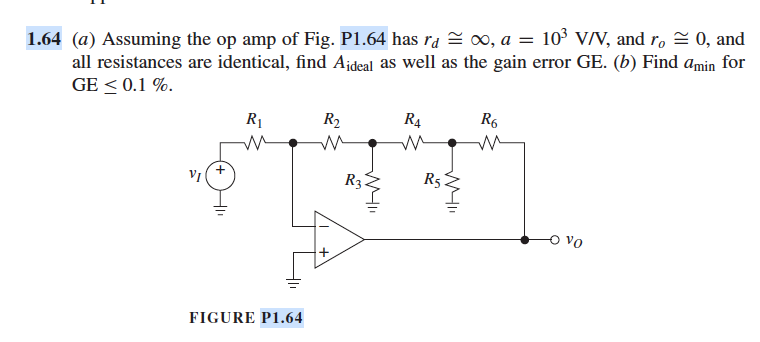

1.64 (a) Assuming the op amp of Fig. P1.64 has ra = 00, a = 10VN, and r, = 0, and all resistances are identical, find Aideal as well as the gain error GE. (b) Find Amin for GE < 0.1 %. R1 R4 R6 W R2 VI R3 RS W40 vo FIGURE P1.64
