In the circuit shown below , find the following: (a) total resistance, (b) total current, (c) voltage across each resist

Post by answerhappygod »

In the circuit shown below , find the following:
(a) total resistance, (b) total current, (c) voltage across each
resistor, (d) the power dissipated by each resistor, (e) the total
power.

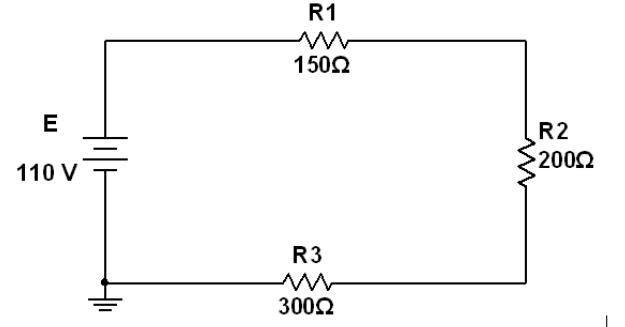

In The Circuit Shown Below Find The Following A Total Resistance B Total Current C Voltage Across Each Resist 1
In The Circuit Shown Below Find The Following A Total Resistance B Total Current C Voltage Across Each Resist 1 (15.75 KiB) Viewed 15 times
R1 150Ω E R2 200Ω 110V R3 Ε 300Ω
