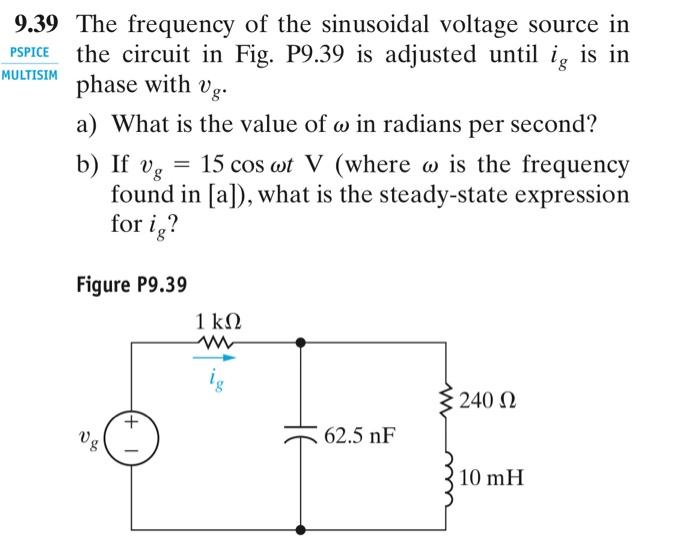

MULTISIM 9.39 The frequency of the sinusoidal voltage source in the circuit in Fig. P9.39 is adjusted until ig is in phase with vg. a) What is the value of w in radians per second? b) If vg = 15 cos wt V (where w is the frequency found in [a]), what is the steady-state expression for ig? Figure P9.39 1 k 12 w 240 12 + 1 62.5 nF 8 10 mH
