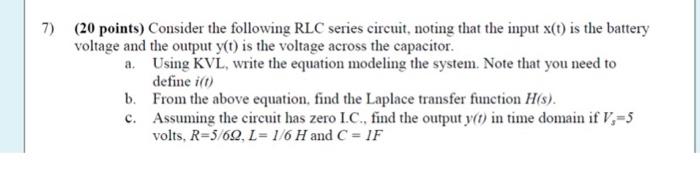

7) (20 points) Consider the following RLC series circuit, noting that the input x(t) is the battery voltage and the output y(t) is the voltage across the capacitor. a. Using KVL, write the equation modeling the system. Note that you need to define i() b. From the above equation, find the Laplace transfer function H(s). c. Assuming the circuit has zero I.C., find the output y(t) in time domain if V;=5 volts, R=5/62, L= 1/6 H and C = IF

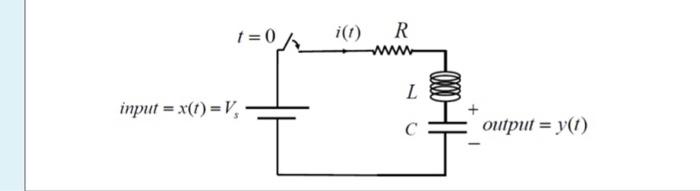

1 = 0 R L input = x() =V, с output = y(1)
