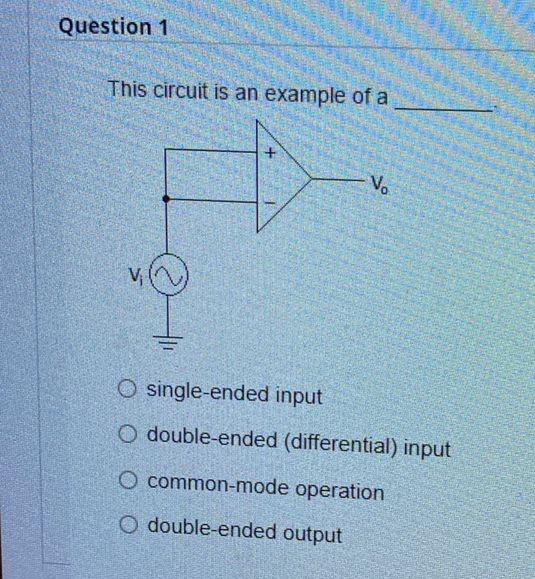

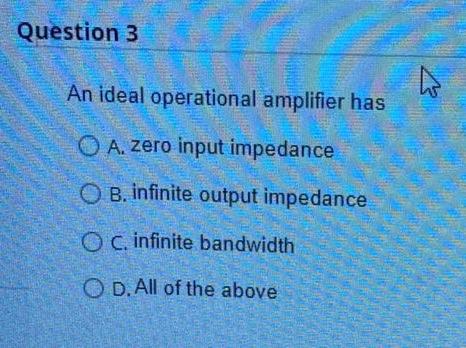

Question 1 This circuit is an example of a -V. O single-ended input O double-ended (differential) input O common-mode operation O double-ended output Question 2 The common-mode rejection ratio (CMRR) is defined by O Adl Ac O Ad + Ac O Adx Ac O AclAd Question 3 An ideal operational amplifier has O A. zero input impedance O B. infinite output impedance O c. infinite bandwidth O D. All of the above
