(b) For the following circuit in Fig 1b, plot the waveforms at outputs Yo, Y1, Y2, and Y3. The clock is a square wave of

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

(b) For the following circuit in Fig 1b, plot the waveforms at outputs Yo, Y1, Y2, and Y3. The clock is a square wave of

Post by answerhappygod »

B For The Following Circuit In Fig 1b Plot The Waveforms At Outputs Yo Y1 Y2 And Y3 The Clock Is A Square Wave Of 1
B For The Following Circuit In Fig 1b Plot The Waveforms At Outputs Yo Y1 Y2 And Y3 The Clock Is A Square Wave Of 1 (28.16 KiB) Viewed 8 times

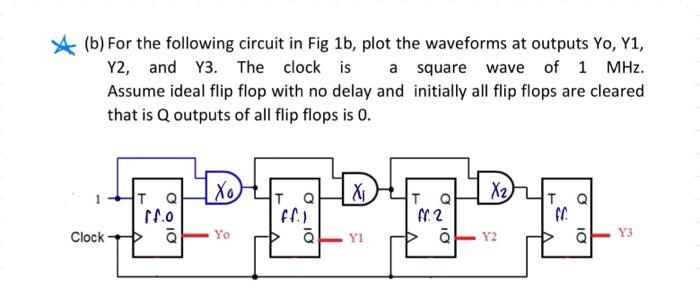

(b) For the following circuit in Fig 1b, plot the waveforms at outputs Yo, Y1, Y2, and Y3. The clock is a square wave of 1 MHz. Assume ideal flip flop with no delay and initially all flip flops are cleared that is Qoutputs of all flip flops is 0. XO та X2 X 1 ------- та . TQ 2 Clock Yo Y3 Y1 Y2
