For the circuit: Ib 1002 + + 20V 1 + 05A 100 Vo B. Determine Step 1: The number of node voltages. Step 2: The number of

Post by answerhappygod »

For The Circuit Ib 1002 20v 1 05a 100 Vo B Determine Step 1 The Number Of Node Voltages Step 2 The Number Of 1
For The Circuit Ib 1002 20v 1 05a 100 Vo B Determine Step 1 The Number Of Node Voltages Step 2 The Number Of 1 (156.64 KiB) Viewed 41 times

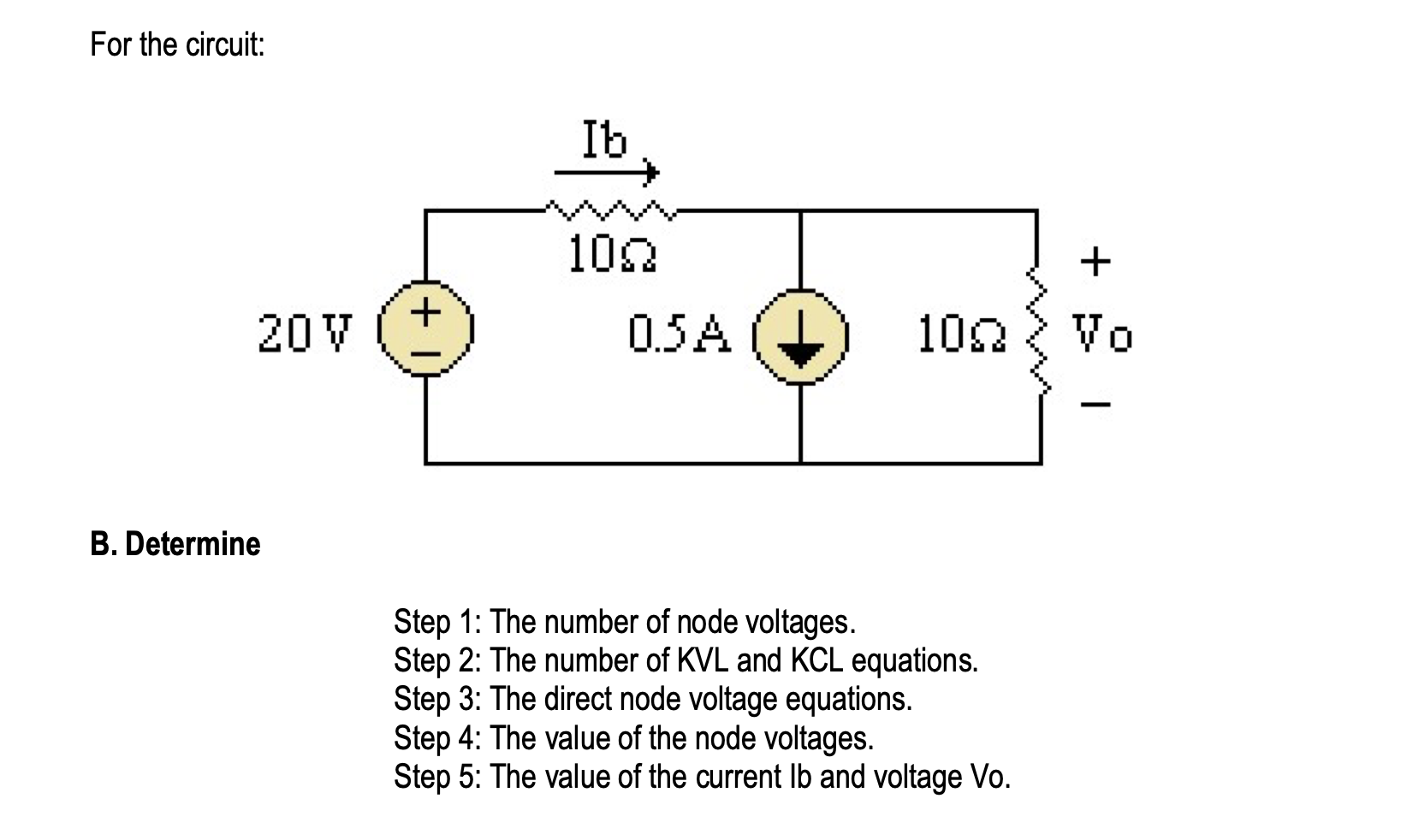

For the circuit: Ib 1002 + + 20V 1 + 05A 100 Vo B. Determine Step 1: The number of node voltages. Step 2: The number of KVL and KCL equations. Step 3: The direct node voltage equations. Step 4: The value of the node voltages. Step 5: The value of the current Ib and voltage Vo.
