Problem 4: In the figure below, the two pulses repeat at 2ms intervals. This series goes through a filter defined by: 10

[answerhappygod]

Problem 4 In The Figure Below The Two Pulses Repeat At 2ms Intervals This Series Goes Through A Filter Defined By 10 1 (29.29 KiB) Viewed 12 times

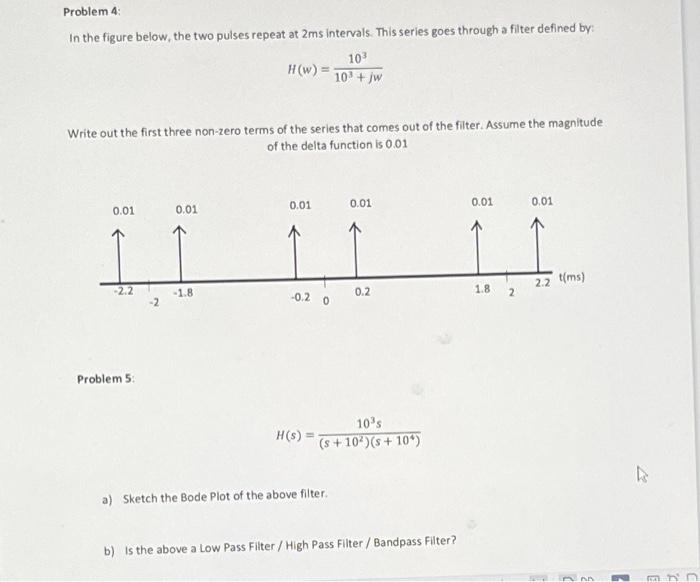

Problem 4: In the figure below, the two pulses repeat at 2ms intervals. This series goes through a filter defined by: 103 H(W) = 10+ jw Write out the first three non-zero terms of the series that comes out of the filter. Assume the magnitude of the delta function is 0.01 0.01 0.01 0.01 0.01 0.01 0.01 Tii -1.8 2.2 (ms) 0.2 1.8 2 -0.2 0 Problem 5 10's H(S) = (s + 10%)(8 + 10) a) Sketch the Bode Plot of the above filter b) is the above a Low Pass Filter / High Pass Filter / Bandpass Filter? no 2 n
