2 31. The input resistance of a Junction Field Effect Transistor (JFET) is usually a. low b. high c. zero d. none of the

[answerhappygod]

2 31 The Input Resistance Of A Junction Field Effect Transistor Jfet Is Usually A Low B High C Zero D None Of The 1 (30.95 KiB) Viewed 15 times

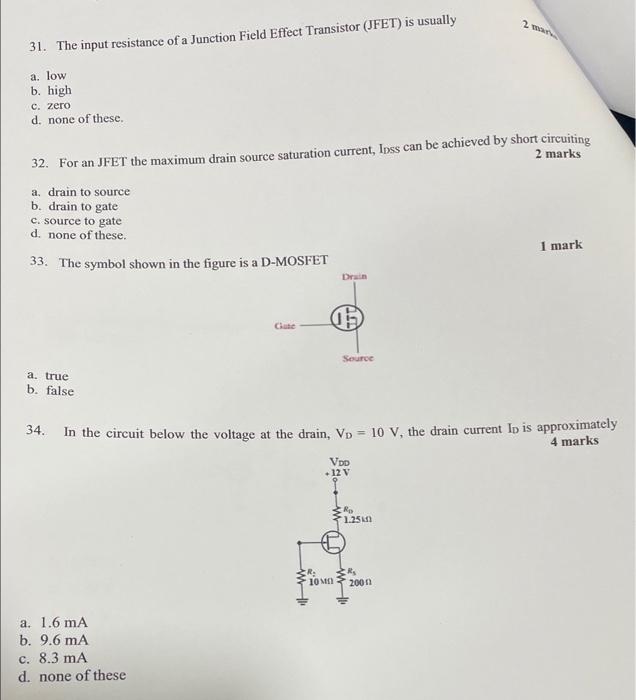

2 31. The input resistance of a Junction Field Effect Transistor (JFET) is usually a. low b. high c. zero d. none of these 32. For an JFET the maximum drain source saturation current, Ipss can be achieved by short circuiting 2 marks a, drain to source b. drain to gate c. source to gate d. none of these 33. The symbol shown in the figure is a D-MOSFET 1 mark Drain Cute Source a true b. false 34. In the circuit below the voltage at the drain, Vp - 10 V, the drain current Ip is approximately 4 marks VOD 12 V RO 1.25 W 10 M 2000 a. 1.6 mA b. 9.6 mA c. 8.3 mA d. none of these
