Select The Correct Transfer Function Of The System That Has The Approximation Bode Magnitude Diagram As Follows 20 Db D 1 (51.19 KiB) Viewed 12 times
please do it in 30 minutes please urgently... I'll give you up thumb definitely

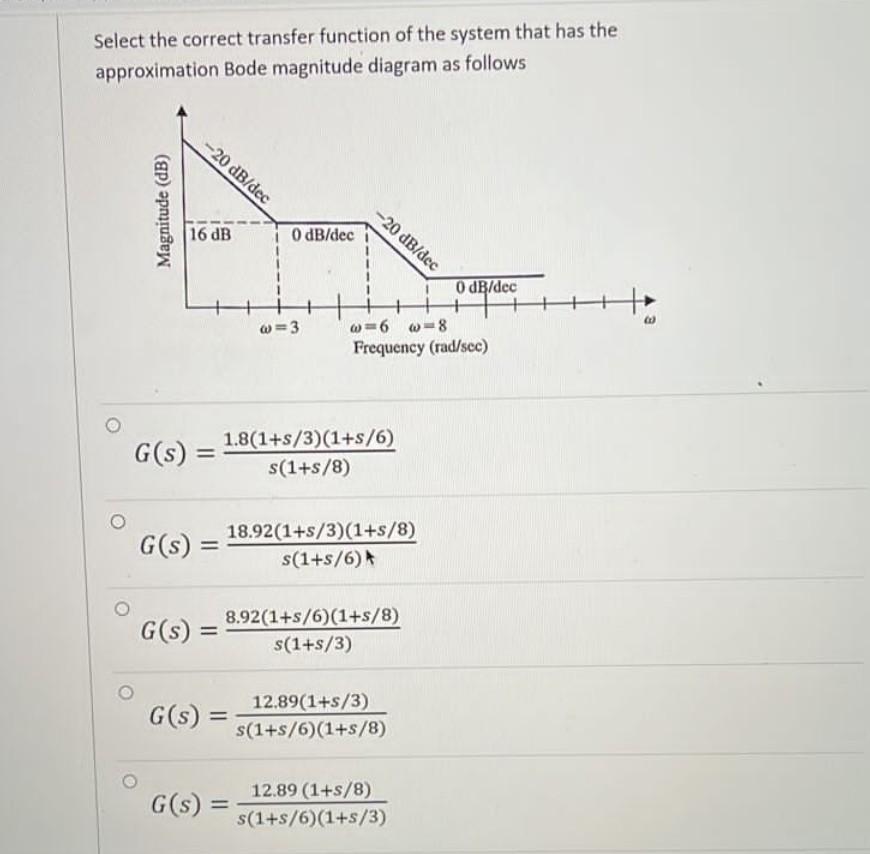

Select the correct transfer function of the system that has the approximation Bode magnitude diagram as follows -20 dB/dec Magnitude (dB) -20 dB/dec 16 dB O dB/dec OdB/dec w=3 @=6 «-8 Frequency (rad/sec) G(s) = 1.8(1+s/3)(1+s/6) s(1+s/8) G(s) = 18.92(1+s/3)(1+s/8) s(1+5/6) G(s) = 8.92(1+S/6)(1+s/8) S(1+s/3) 12.89(1+s/3) G(s) = s(1+5/6)(1+5/8) 12.89 (1+5/8) G(s) = s(1+s/6)(1+s/3)
