blem 1: Multiple diode circuit analysis (15 points) Find the Q-points for the diodes using the constant voltage drop mod

[answerhappygod]

Blem 1 Multiple Diode Circuit Analysis 15 Points Find The Q Points For The Diodes Using The Constant Voltage Drop Mod 1 (24.04 KiB) Viewed 24 times

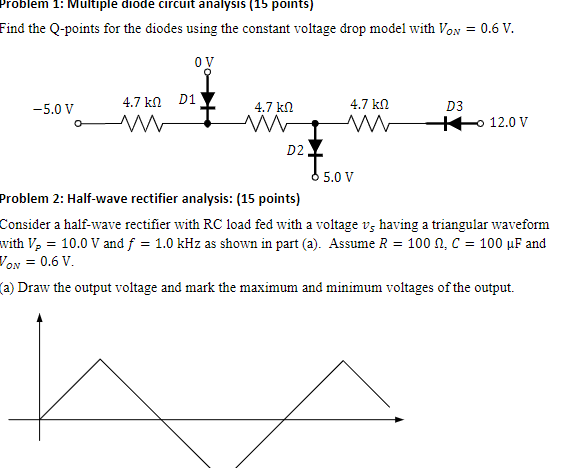

blem 1: Multiple diode circuit analysis (15 points) Find the Q-points for the diodes using the constant voltage drop model with Von = 0.6 V. = ov -5.0 V 4.7 kN D1 W 4.7 kΩ w D2 4.7 k.22 W D3 * 12.0 V 5.0 V Problem 2: Half-wave rectifier analysis: (15 points) Consider a half-wave rectifier with RC load fed with a voltage vs having a triangular waveform with V, = 10. V and f = 1.0 kHz as shown in part (a). Assume R = 100 , C = 100 uF and Von = 0.6 V. (a) Draw the output voltage and mark the maximum and minimum voltages of the output.
