. K 22 Given the system G(z)=(z+0.3–30.9539)(2+0.3+30.9539) with a sampling time T, = 0.05 sec. Using root locus, determ

Post by answerhappygod »

K 22 Given The System G Z Z 0 3 30 9539 2 0 3 30 9539 With A Sampling Time T 0 05 Sec Using Root Locus Determ 1
K 22 Given The System G Z Z 0 3 30 9539 2 0 3 30 9539 With A Sampling Time T 0 05 Sec Using Root Locus Determ 1 (14.78 KiB) Viewed 24 times

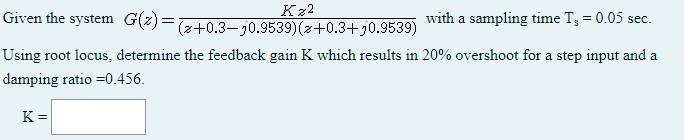

. K 22 Given the system G(z)=(z+0.3–30.9539)(2+0.3+30.9539) with a sampling time T, = 0.05 sec. Using root locus, determine the feedback gain K which results in 20% overshoot for a step input and a damping ratio =0.456. K=
