(d) [12 marks]For the circuit of Fig. QI i. List ALL the elements that are in series with one another ii. List ALL the e

Post by answerhappygod »

D 12 Marks For The Circuit Of Fig Qi I List All The Elements That Are In Series With One Another Ii List All The E 1
D 12 Marks For The Circuit Of Fig Qi I List All The Elements That Are In Series With One Another Ii List All The E 1 (112.51 KiB) Viewed 33 times
The whole of (d)

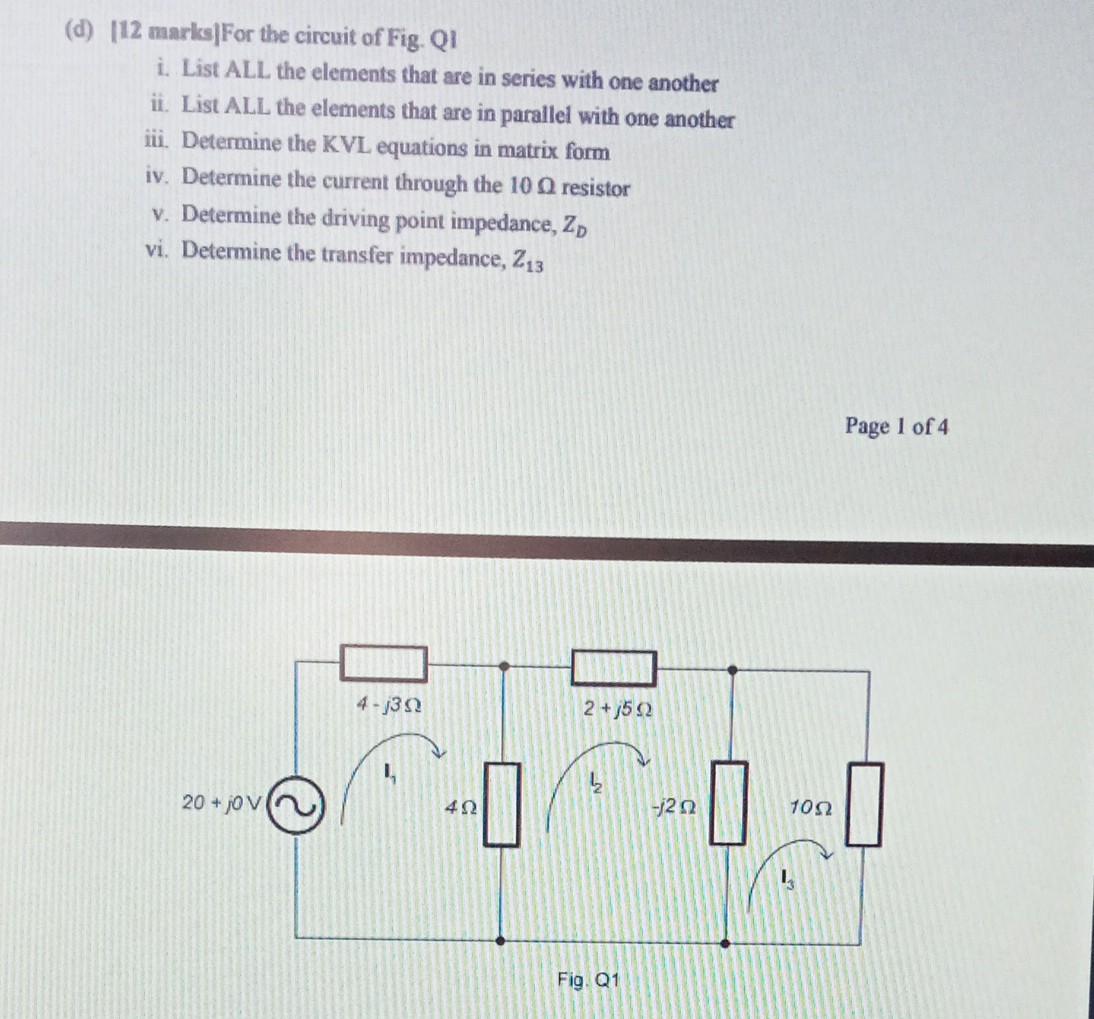

(d) [12 marks]For the circuit of Fig. QI i. List ALL the elements that are in series with one another ii. List ALL the elements that are in parallel with one another iii. Determine the KVL equations in matrix form iv. Determine the current through the 10 Q resistor v. Determine the driving point impedance, 2p vi. Determine the transfer impedance, 213 Page 1 of 4 4-312 2 + 1522 b 20+ jov 412 -122 1092 Fig. Q1
