3. (20 points) Find the Miller capacitance and the input capacitance of the amplifier below if transistor parameters are

Post by answerhappygod »

3 20 Points Find The Miller Capacitance And The Input Capacitance Of The Amplifier Below If Transistor Parameters Are 1
3 20 Points Find The Miller Capacitance And The Input Capacitance Of The Amplifier Below If Transistor Parameters Are 1 (16.94 KiB) Viewed 15 times

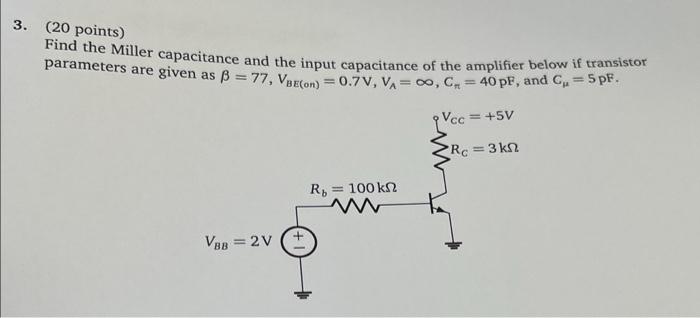

3. (20 points) Find the Miller capacitance and the input capacitance of the amplifier below if transistor parameters are given as B = 77, VpEcon= 0.7V, Vi=00, CH = 40 pF, and Cu = 5 pk. Vect = +5V Rc=3k2 Ro = 100 k 2 V88 = 2V
