For the amplifier given below, the midband gain is given as 20dB. The transistor pa rameters are given as B = 100 and 00

Post by answerhappygod »

For The Amplifier Given Below The Midband Gain Is Given As 20db The Transistor Pa Rameters Are Given As B 100 And 00 1
For The Amplifier Given Below The Midband Gain Is Given As 20db The Transistor Pa Rameters Are Given As B 100 And 00 1 (22.64 KiB) Viewed 23 times

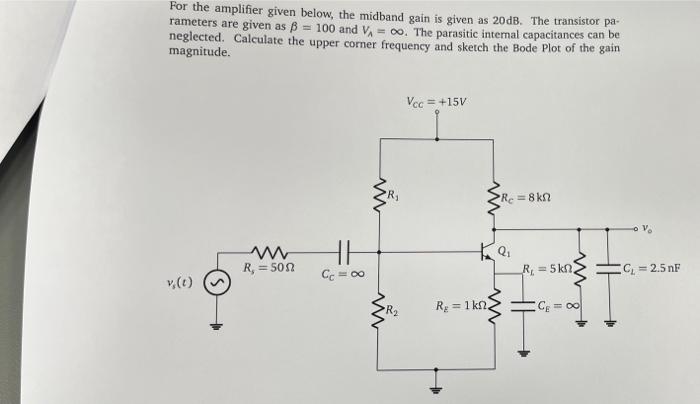

For the amplifier given below, the midband gain is given as 20dB. The transistor pa rameters are given as B = 100 and 00. The parasitic internal capacitances can be neglected. Calculate the upper corner frequency and sketch the Bode Plot of the gain magnitude. Vcc = +15V W RC = 8k2 V. W HE Q W R = 5002 = 5k Cc = 00 CC = 2.5 nF W y W R; = 1k12 CE=0
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
