Find the Miller capacitance and the input capacitance of the amplifier below if transistor parameters are given as B = 7

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Find the Miller capacitance and the input capacitance of the amplifier below if transistor parameters are given as B = 7

Post by answerhappygod »

Find The Miller Capacitance And The Input Capacitance Of The Amplifier Below If Transistor Parameters Are Given As B 7 1
Find The Miller Capacitance And The Input Capacitance Of The Amplifier Below If Transistor Parameters Are Given As B 7 1 (19.5 KiB) Viewed 16 times

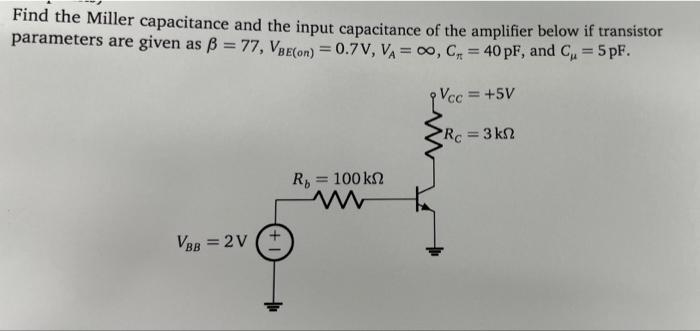

Find the Miller capacitance and the input capacitance of the amplifier below if transistor parameters are given as B = 77, VBE(on) = 0.7V, VA=00, CA = 40 pF, and Cu = 5 pF. Voce = +5V Rc = 3k2 Rg = 100k 2 + Ves = 2V +1
