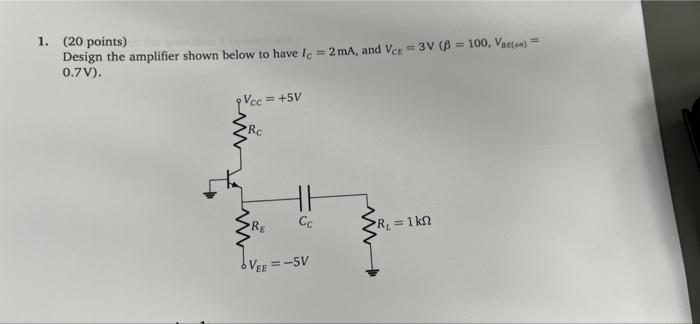

1. (20 points) Design the amplifier shown below to have I = 2 mA, and Vor = 3V (B = 100, Veecon = 0.7V). Voc = +5V •Rc H
