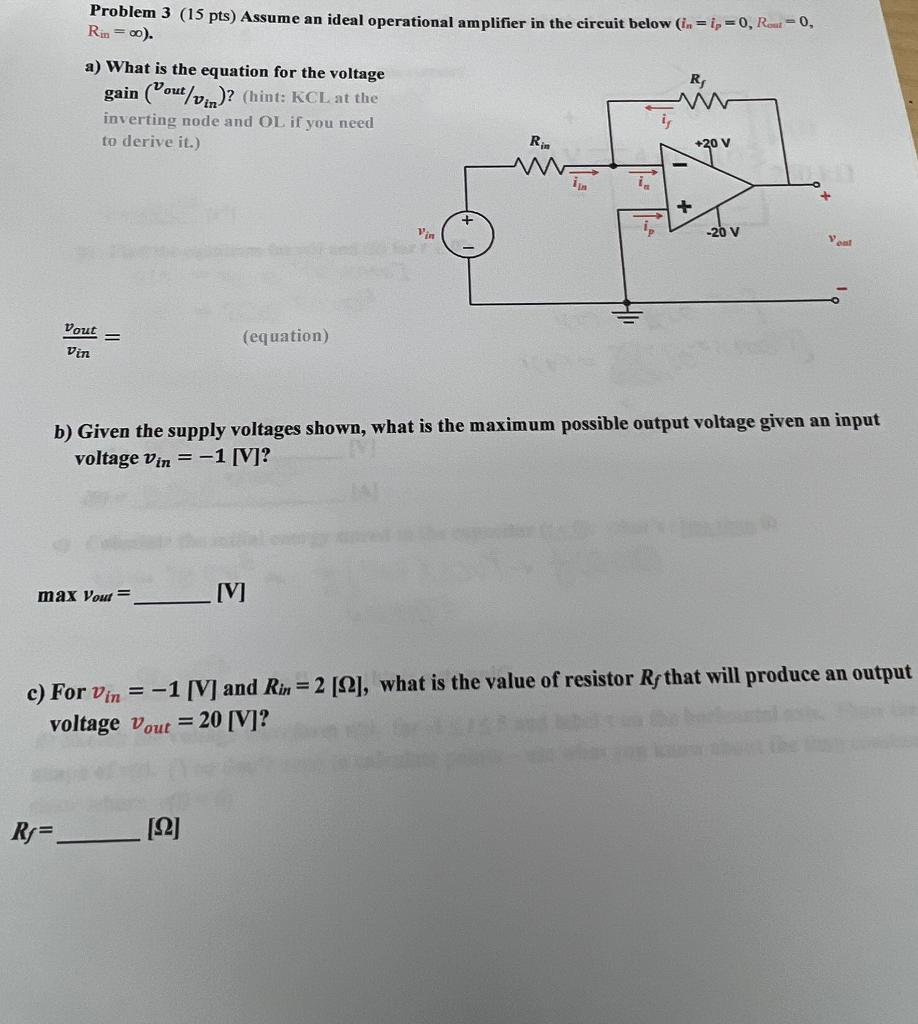

Problem 3 (15 pts) Assume an ideal operational amplifier in the circuit below (1. = i, = 0, Rouz = 0, Rin=). a) What is

[answerhappygod]

Problem 3 15 Pts Assume An Ideal Operational Amplifier In The Circuit Below 1 I 0 Rouz 0 Rin A What Is 1 (88.66 KiB) Viewed 16 times

Problem 3 (15 pts) Assume an ideal operational amplifier in the circuit below (1. = i, = 0, Rouz = 0, Rin=). a) What is the equation for the voltage gain ("out/vin)? (hint: KCL at the inverting node and OL if you need to derive it.) Rin +20 V + + Vin -20 V Peal Vout (equation) Vin b) Given the supply voltages shown, what is the maximum possible output voltage given an input voltage Vin = -1Vj? max Vour = [V] c) For Vin = -1 [V] and Rin = 2 [2], what is the value of resistor Rs that will produce an output voltage Vout = 20 [V]? Ry= - [2]
