Refer to the circuit in figure 1. The system is connected to a symmetrical, three-phase , star-connected supply at 50 Hz

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Refer to the circuit in figure 1. The system is connected to a symmetrical, three-phase , star-connected supply at 50 Hz

Post by answerhappygod »

Refer To The Circuit In Figure 1 The System Is Connected To A Symmetrical Three Phase Star Connected Supply At 50 Hz 1
Refer To The Circuit In Figure 1 The System Is Connected To A Symmetrical Three Phase Star Connected Supply At 50 Hz 1 (189.33 KiB) Viewed 13 times

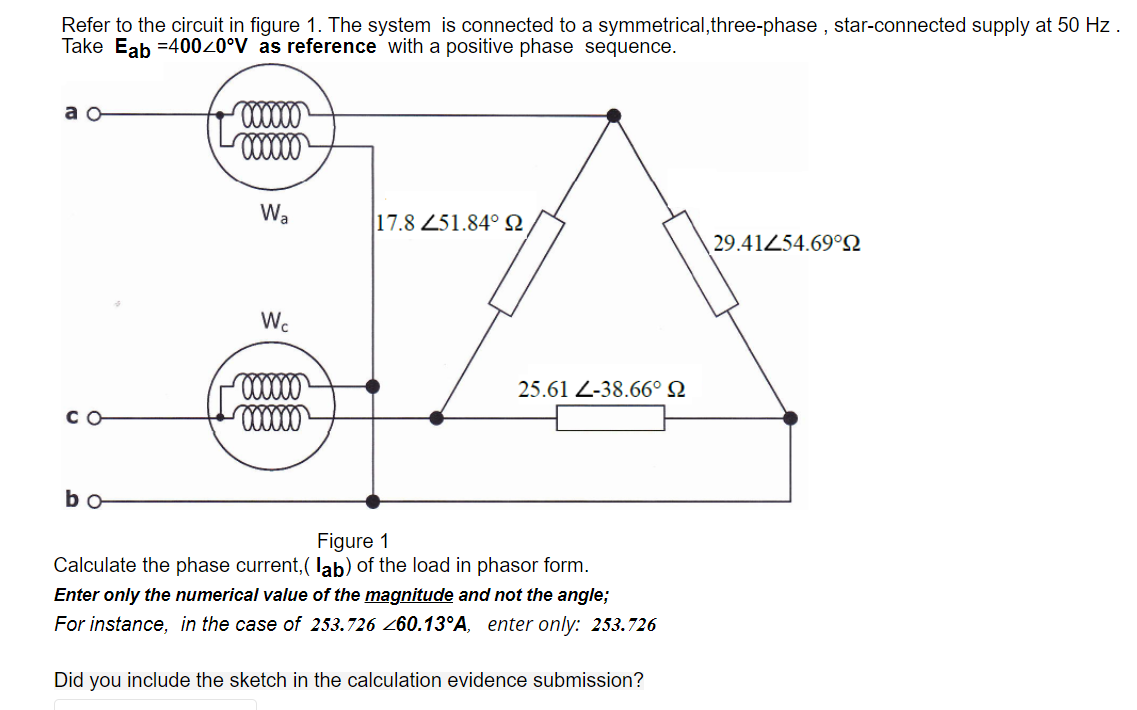

Refer to the circuit in figure 1. The system is connected to a symmetrical, three-phase , star-connected supply at 50 Hz. Take Eab=40020°V as reference with a positive phase sequence. ао It wono Cavite wa 17.8 251.84° 22 29.41Z54.69°Ω Wc 25.61 Z-38.66° 22 CO- a bo Figure 1 Calculate the phase current,( lab) of the load in phasor form. Enter only the numerical value of the magnitude and not the angle; For instance, in the case of 253.726 260.13°A, enter only: 253.726 Did you include the sketch in the calculation evidence submission?
