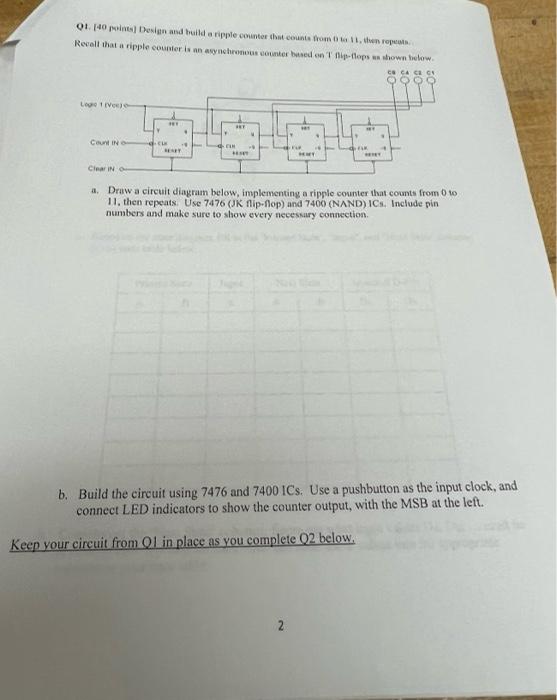

01 [40 polts) Design and build a ripple counter that counts from all the reports Revell that a ripple counter is an asyn

[answerhappygod]

01 40 Polts Design And Build A Ripple Counter That Counts From All The Reports Revell That A Ripple Counter Is An Asyn 1 (36.02 KiB) Viewed 19 times

01 [40 polts) Design and build a ripple counter that counts from all the reports Revell that a ripple counter is an asynchronour counter bon Tip-flops shown below LIV RE . CIN CIH Clearin 4. Draw a circuit diagram below, implementing a ripple counter that counts from 0 to 11. then repeats. Use 7476 (JK flip-flop) and 7400 (NAND) ICs. Include pin numbers and make sure to show every necessary connection b. Build the circuit using 7476 and 7400 ICs. Use a pushbutton as the input clock, and connect LED indicators to show the counter output, with the MSB at the left. Keep your circuit from Q1 in place as you complete 02 below. 2
