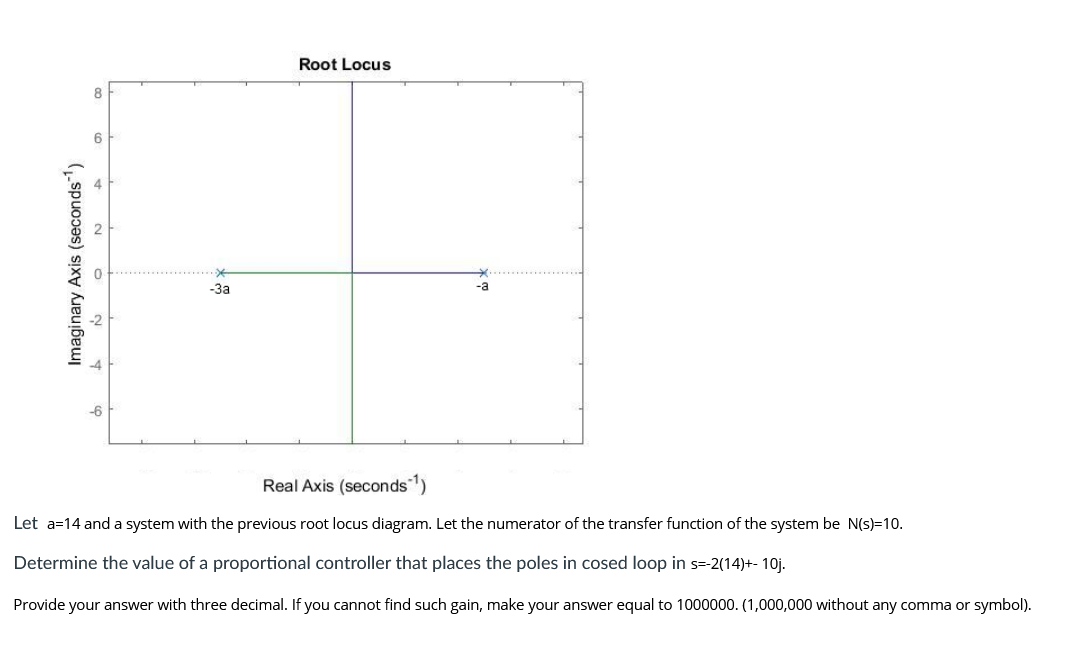

Root Locus 8 6 Imaginary Axis (seconds) -3a -a Real Axis (seconds) Let a=14 and a system with the previous root locus diagram. Let the numerator of the transfer function of the system be N(s)=10. Determine the value of a proportional controller that places the poles in cosed loop in s=-2(14)+- 10. Provide your answer with three decimal. If you cannot find such gain, make your answer equal to 1000000. (1,000,000 without any comma or symbol).

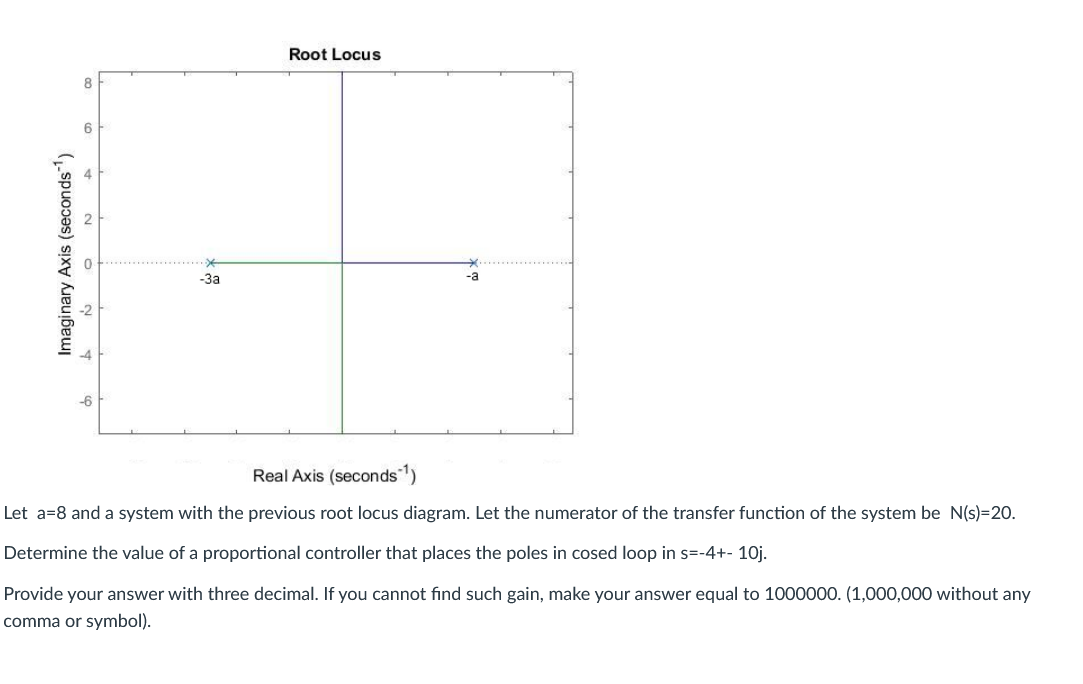

Root Locus 8 Imaginary Axis (seconds) -3a -a Real Axis (seconds) Let a=8 and a system with the previous root locus diagram. Let the numerator of the transfer function of the system be N(s)=20. Determine the value of a proportional controller that places the poles in cosed loop in s=-4+- 10j. Provide your answer with three decimal. If you cannot find such gain, make your answer equal to 1000000. (1,000,000 without any comma or symbol).
