2) Step-Down Converter: Consider all components to be ideal. The converter is operation in a discontinuous current mode:

Post by answerhappygod »

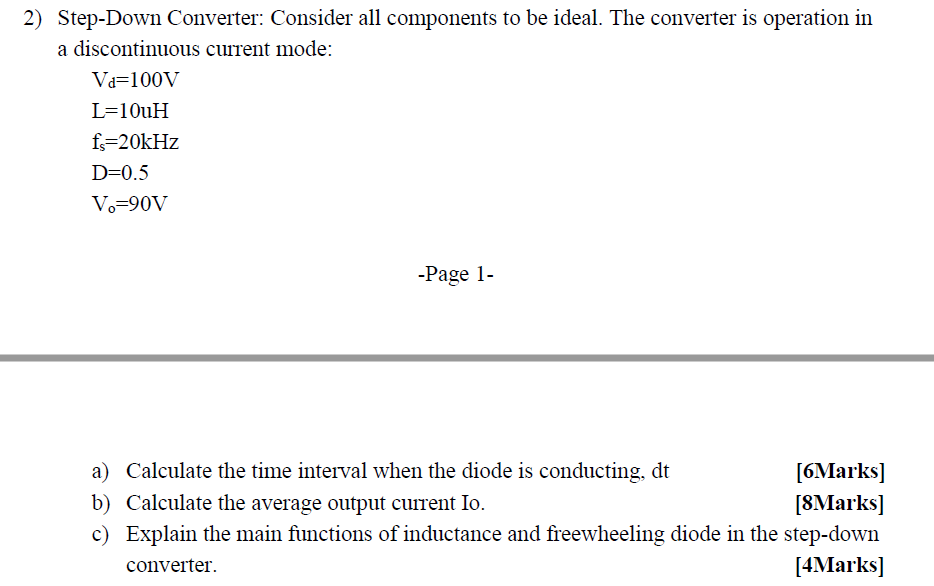

2 Step Down Converter Consider All Components To Be Ideal The Converter Is Operation In A Discontinuous Current Mode 1
2 Step Down Converter Consider All Components To Be Ideal The Converter Is Operation In A Discontinuous Current Mode 1 (29.56 KiB) Viewed 21 times
2) Step-Down Converter: Consider all components to be ideal. The converter is operation in a discontinuous current mode: Va=100V L=10uH f=20kHz D=0.5 Vo=90V - Page 12 a) Calculate the time interval when the diode is conducting, dt [6Marks) b) Calculate the average output current Io. [8Marks) c) Explain the main functions of inductance and freewheeling diode in the step-down converter. [4Marks]
