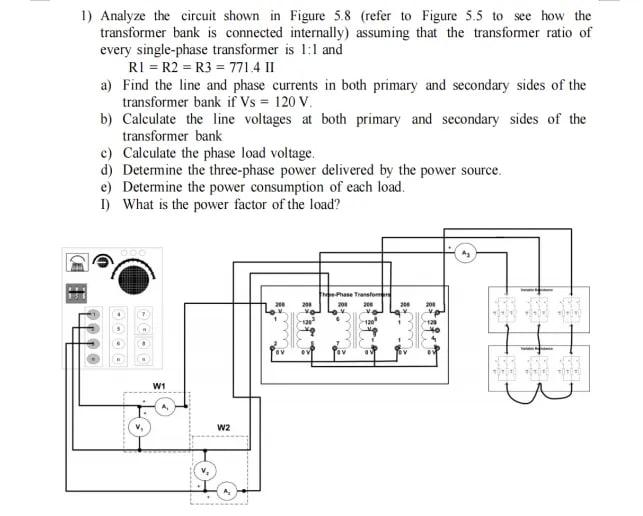

1) Analyze the circuit shown in Figure 5.8 (refer to Figure 5.5 to see how the transformer bank is connected internally)

[answerhappygod]

1 Analyze The Circuit Shown In Figure 5 8 Refer To Figure 5 5 To See How The Transformer Bank Is Connected Internally 1 (45.28 KiB) Viewed 24 times

1) Analyze the circuit shown in Figure 5.8 (refer to Figure 5.5 to see how the transformer bank is connected internally) assuming that the transformer ratio of every single-phase transformer is 1:1 and RI = R2 = R3 = 771.4 II a) Find the line and phase currents in both primary and secondary sides of the transformer bank if Vs = 120 V b) Calculate the line voltages at both primary and secondary sides of the transformer bank c) Calculate the phase load voltage d) Determine the three-phase power delivered by the power source. e) Determine the power consumption of each load 1) What is the power factor of the load? Phase 20 200 200 ___ان HIE OV W1 W2
