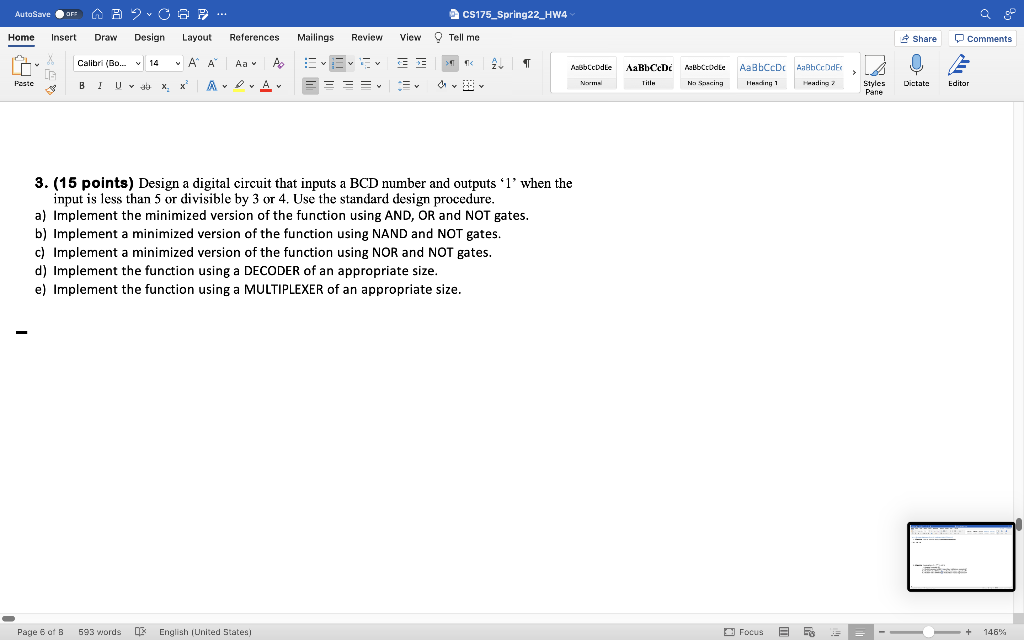

Share Comments AutoSave OF 2 A2OOP... CS175_Spring22_HW4 Home Insert Draw Design Layout References Mailings Review View Tell me Calibri (Bo... v 14 ~ A Ř Aav A == > > n AbbCeDdle IP Paste Normal BIU x x x * $ du ADA AaBbcD Mabbrudte Ba BhcDt anh 3dE Heading Hestia 7 Till Na Sucing Editor Dictata Styles Pane Y 3. (15 points) Design a digital circuit that inputs a BCD number and outputs 'l' when the input is less than 5 or divisible by 3 or 4. Use the standard design procedure. a) Implement the minimized version of the function using AND, OR and NOT gates. b) Implement a minimized version of the function using NAND and NOT gates. c) Implement a minimized version of the function using NOR and NOT gates. d) Implement the function using a DECODER of an appropriate size. e) Implement the function using a MULTIPLEXER of an appropriate size. Page 6 of 8 593 words OE DE English (United States) Focus EES 146%
