QUESTION 1 In a delta-star system the impedances of the load are as follows: Za =24.082-48.37°22 ; Zb=25.52 48.18° 22 an

Post by answerhappygod »

Question 1 In A Delta Star System The Impedances Of The Load Are As Follows Za 24 082 48 37 22 Zb 25 52 48 18 22 An 1
Question 1 In A Delta Star System The Impedances Of The Load Are As Follows Za 24 082 48 37 22 Zb 25 52 48 18 22 An 1 (41.36 KiB) Viewed 36 times

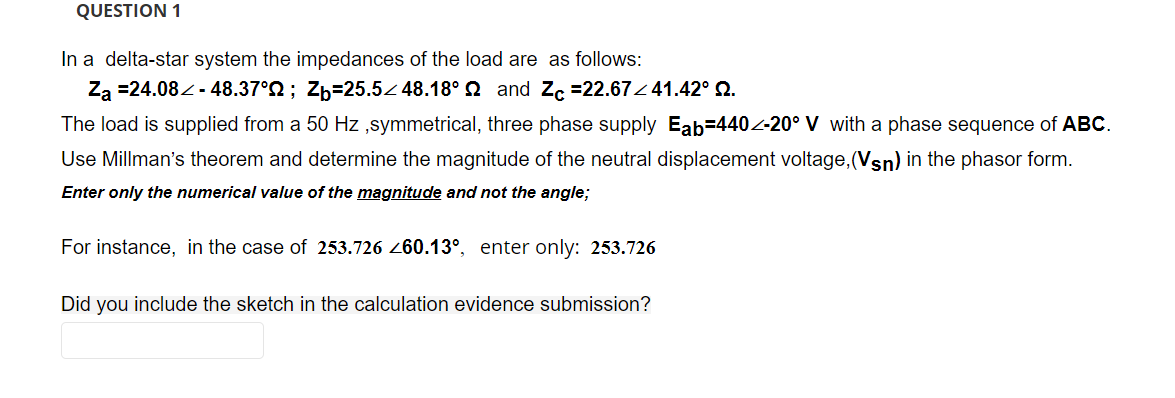

QUESTION 1 In a delta-star system the impedances of the load are as follows: Za =24.082-48.37°22 ; Zb=25.52 48.18° 22 and Zc = 22.67 241.42° 12. The load is supplied from a 50 Hz ,symmetrical, three phase supply Eab=4402-20° V with a phase sequence of ABC. Use Millman's theorem and determine the magnitude of the neutral displacement voltage, (Van) in the phasor form. Enter only the numerical value of the magnitude and not the angle; For instance, in the case of 253.726 260.13º, enter only: 253.726 Did you include the sketch in the calculation evidence submission?
