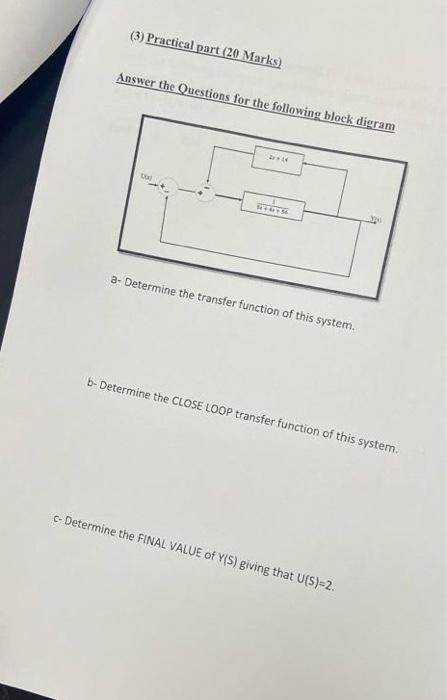

(3) Practical part (20 Marks) Answer the Questions for the following block digram a-Determine the transfer function of this system. b-Determine the CLOSE LOOP transfer function of this system. -Determine the FINAL VALUE of Y(S) giving that U(S)=2.

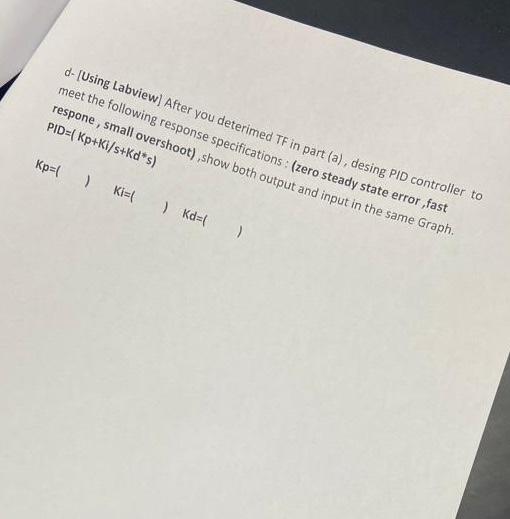

d- (Using Labview] After you deterimed TF in part (a), desing PID controller to meet the following response specifications : (zero steady state error fast respone, small overshoot), show both output and input in the same Graph. PID=( Kp+Ki/s+Kds) Kp=1 ) Kiel ) Kd=
