A synchronous circuit using J-K flip-flops is required to repeatedly generate, in bi- nary, the sequence 1, 4, 3, 5, 7,

[answerhappygod]

A Synchronous Circuit Using J K Flip Flops Is Required To Repeatedly Generate In Bi Nary The Sequence 1 4 3 5 7 1 (32.15 KiB) Viewed 37 times

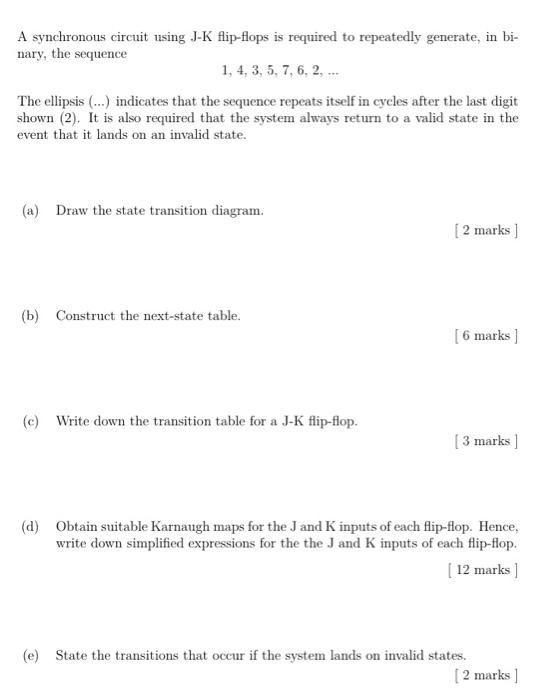

A synchronous circuit using J-K flip-flops is required to repeatedly generate, in bi- nary, the sequence 1, 4, 3, 5, 7, 6, 2,... The ellipsis (...) indicates that the sequence repeats itself in cycles after the last digit shown (2). It is also required that the system always return to a valid state in the event that it lands on an invalid state. (a) Draw the state transition diagram. [2 marks] (b) Construct the next-state table. [6 marks (c) Write down the transition table for a J-K flip-flop. [3 marks (a) Obtain suitable Karnaugh maps for the J and K inputs of each flip-flop. Hence, write down simplified expressions for the the J and K inputs of each flip-flop. [ 12 marks] (e) State the transitions that occur if the system lands on invalid states. [2 marks]
