A single-phase half-wave controlled rectifier is to be designed to transfer power from an AC source to a DC source. The

Post by answerhappygod »

A Single Phase Half Wave Controlled Rectifier Is To Be Designed To Transfer Power From An Ac Source To A Dc Source The 1
A Single Phase Half Wave Controlled Rectifier Is To Be Designed To Transfer Power From An Ac Source To A Dc Source The 1 (80.22 KiB) Viewed 26 times

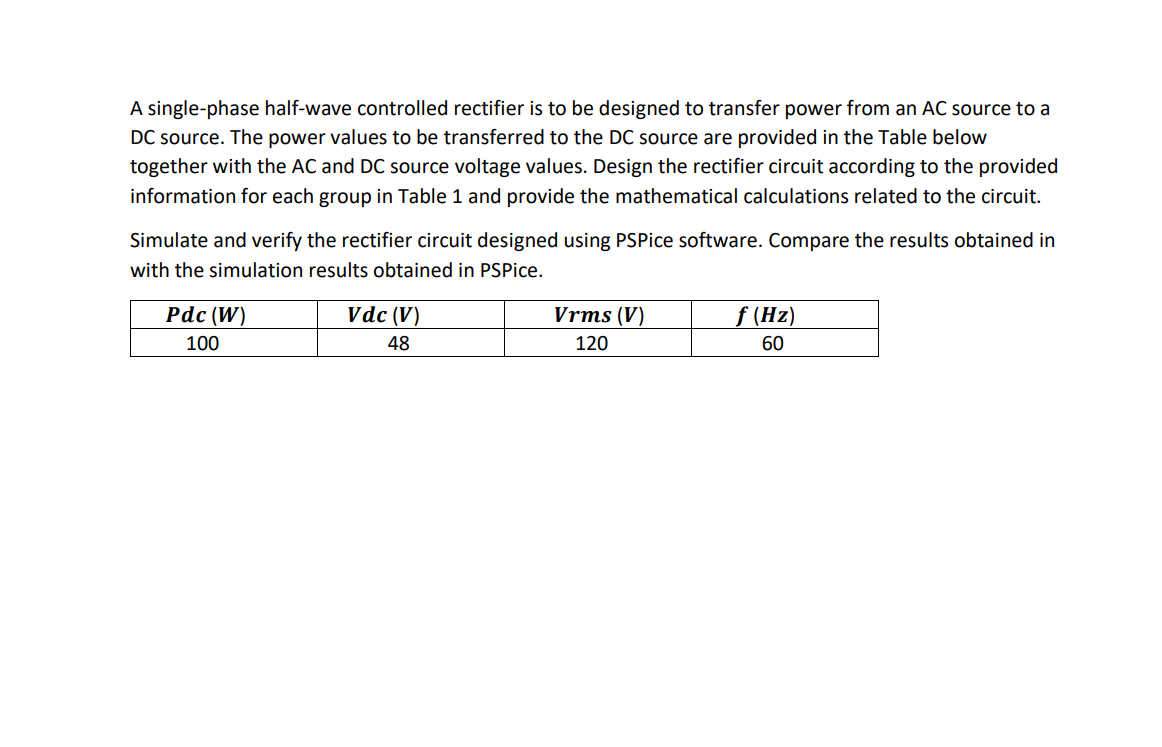

A single-phase half-wave controlled rectifier is to be designed to transfer power from an AC source to a DC source. The power values to be transferred to the DC source are provided in the Table below together with the AC and DC source voltage values. Design the rectifier circuit according to the provided information for each group in Table 1 and provide the mathematical calculations related to the circuit. Simulate and verify the rectifier circuit designed using PSPice software. Compare the results obtained in with the simulation results obtained in PSPice. Pdc (W) 100 Vdc (V) 48 Vrms (V) 120 f (Hz) 60
