27. Use the figure below to answer the following: R2 R1 w 0.5 ohm 4 ohm R3 W 13=0.5A 0.5 ohm

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

27. Use the figure below to answer the following: R2 R1 w 0.5 ohm 4 ohm R3 W 13=0.5A 0.5 ohm

Post by answerhappygod »

27 Use The Figure Below To Answer The Following R2 R1 W 0 5 Ohm 4 Ohm R3 W 13 0 5a 0 5 Ohm R4 I It 2a Vt 8v Hill A Th 1
27 Use The Figure Below To Answer The Following R2 R1 W 0 5 Ohm 4 Ohm R3 W 13 0 5a 0 5 Ohm R4 I It 2a Vt 8v Hill A Th 1 (21.75 KiB) Viewed 43 times

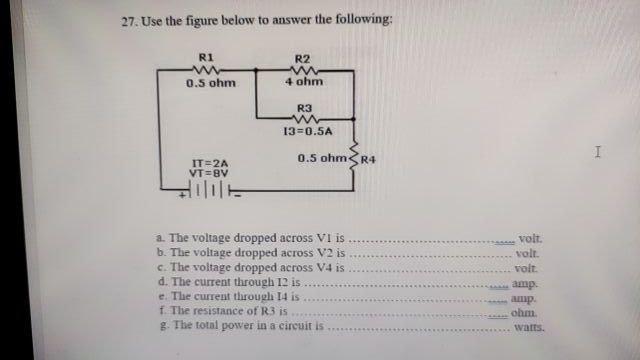

27. Use the figure below to answer the following: R2 R1 w 0.5 ohm 4 ohm R3 W 13=0.5A 0.5 ohm<R4 I IT=2A VT=8V Hill a. The voltage dropped across VI is b. The voltage dropped across V2 is c. The voltage dropped across V4 is d. The current through 12 is The current through 14 is f. The resistance of R3 is g. The total power in a circuit is volt. volt. volt amp. amp ohm watts.
