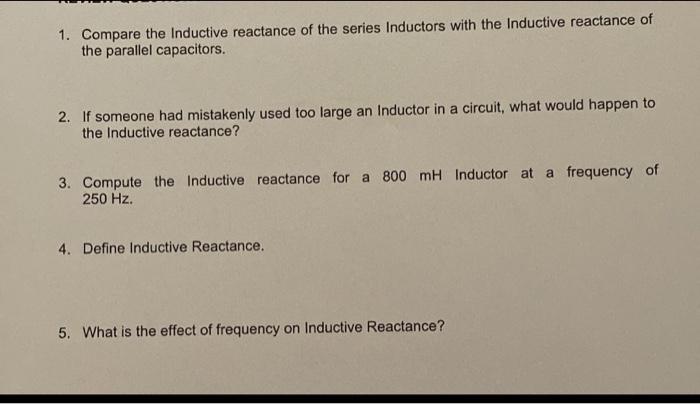

1. Compare the Inductive reactance of the series Inductors with the Inductive reactance of the parallel capacitors. 2. If someone had mistakenly used too large an Inductor in a circuit, what would happen to the Inductive reactance? 3. Compute the Inductive reactance for a 800 mH Inductor at a frequency of 250 Hz. 4. Define Inductive Reactance. 5. What is the effect of frequency on Inductive Reactance?

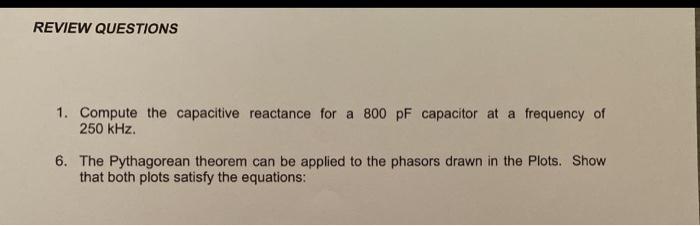

REVIEW QUESTIONS 1. Compute the capacitive reactance for a 800 pF capacitor at a frequency of 250 kHz. 6. The Pythagorean theorem can be applied to the phasors drawn in the Plots. Show that both plots satisfy the equations:
