Part A Use source transformations to find the Norton equivalent circuit with respect to the terminals a, b for the circu

[answerhappygod]

Part A Use Source Transformations To Find The Norton Equivalent Circuit With Respect To The Terminals A B For The Circu 1 (74.58 KiB) Viewed 36 times

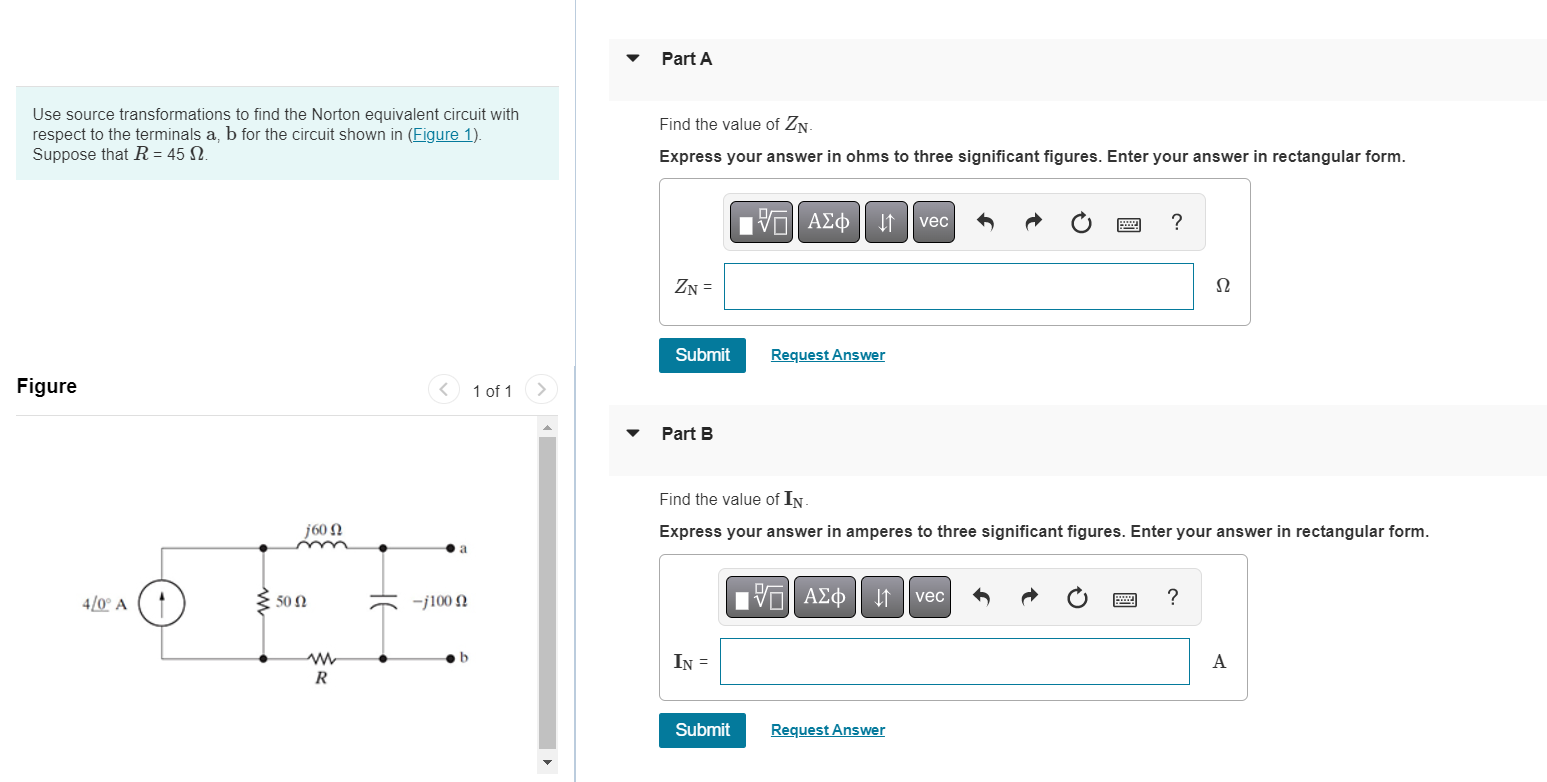

Part A Use source transformations to find the Norton equivalent circuit with respect to the terminals a, b for the circuit shown in (Figure 1). Suppose that R = 45 12. Find the value of ZN Express your answer in ohms to three significant figures. Enter your answer in rectangular form. ΤΕΙ ΑΣφ If vec o ? ZN = 12 Submit Request Answer Figure 1 of 1 Part B Find the value of IN Express your answer in amperes to three significant figures. Enter your answer in rectangular form. j60 Ω 4/0A 5012 -j100 Ω Pa| ΑΣφ If vec ? .b w R IN = A Submit Request Answer
