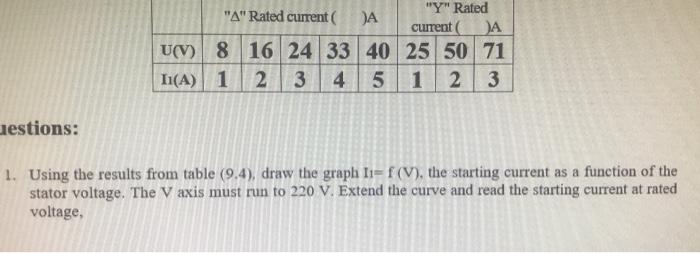

"Y" Rated "A" Rated current JA current JA U(V) 8 16 24 33 40 25 50 71 I1(A) 1 3 4 5 1 2 3 2. 1 estions: 1. Using the results from table (9.4), draw the graph li= f (V), the starting current as a function of the stator voltage. The V axis must run to 220 V. Extend the curve and read the starting current at rated voltage
