Q3:- A binary source with equally likely symbols controls the switch position in a transmitter operating over an AWGN ch

[answerhappygod]

Q3 A Binary Source With Equally Likely Symbols Controls The Switch Position In A Transmitter Operating Over An Awgn Ch 1 (79.54 KiB) Viewed 61 times

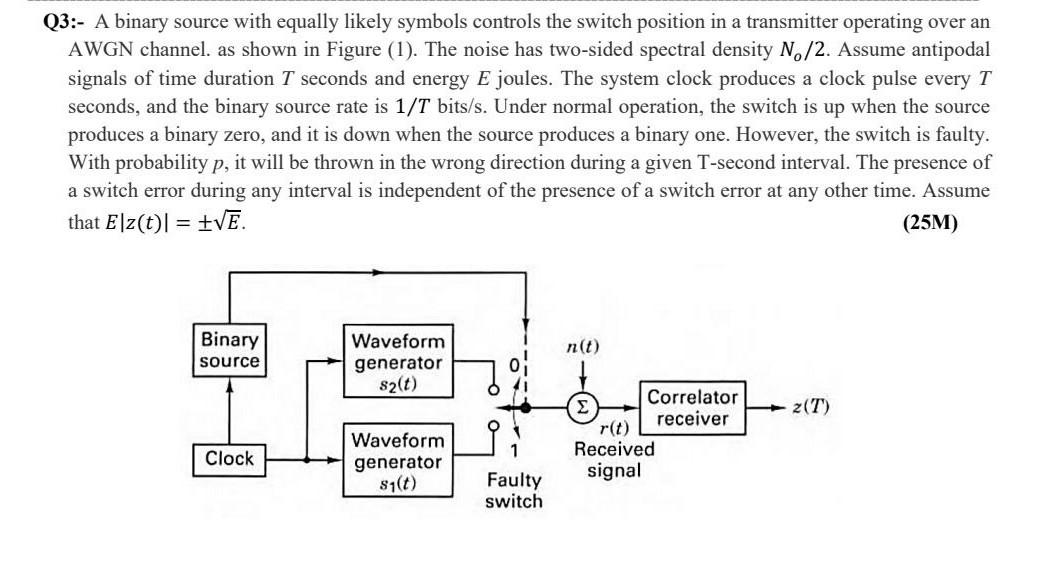

Q3:- A binary source with equally likely symbols controls the switch position in a transmitter operating over an AWGN channel. as shown in Figure (1). The noise has two-sided spectral density N./2. Assume antipodal signals of time duration 7 seconds and energy E joules. The system clock produces a clock pulse every T seconds, and the binary source rate is 1/T bits/s. Under normal operation, the switch is up when the source produces a binary zero, and it is down when the source produces a binary one. However, the switch is faulty. With probability p, it will be thrown in the wrong direction during a given T-second interval. The presence of a switch error during any interval is independent of the presence of a switch error at any other time. Assume that E[z(t) = +VĒ. (25M) Binary source n(t) Waveform generator sz(t) z(T) (Σ Correlator r(t) receiver Received signal Waveform generator Clock 81(t) Faulty switch
