NEED ASAP WILL LIKE
Need Asap Will Like 1
Need Asap Will Like 1 (34.11 KiB) Viewed 34 times

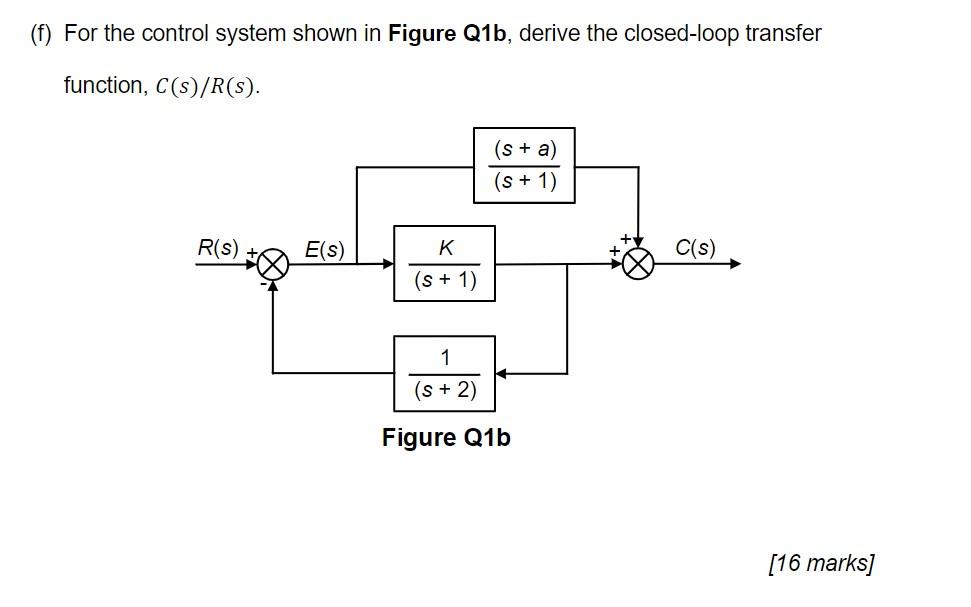

(f) For the control system shown in Figure Q1b, derive the closed-loop transfer function, C(s)/R(S). (s + a) (s + 1) R(S) E(S) K C(s) (s + 1) 1 (s + 2) Figure Q1b [16 marks]
