Complete the table and generate the bode plot (Vout vs Freq, Av vs Freq and Phase vs Freq) of the following circuits! fi

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Complete the table and generate the bode plot (Vout vs Freq, Av vs Freq and Phase vs Freq) of the following circuits! fi

Post by answerhappygod »

Complete The Table And Generate The Bode Plot Vout Vs Freq Av Vs Freq And Phase Vs Freq Of The Following Circuits Fi 1
Complete The Table And Generate The Bode Plot Vout Vs Freq Av Vs Freq And Phase Vs Freq Of The Following Circuits Fi 1 (44.58 KiB) Viewed 55 times

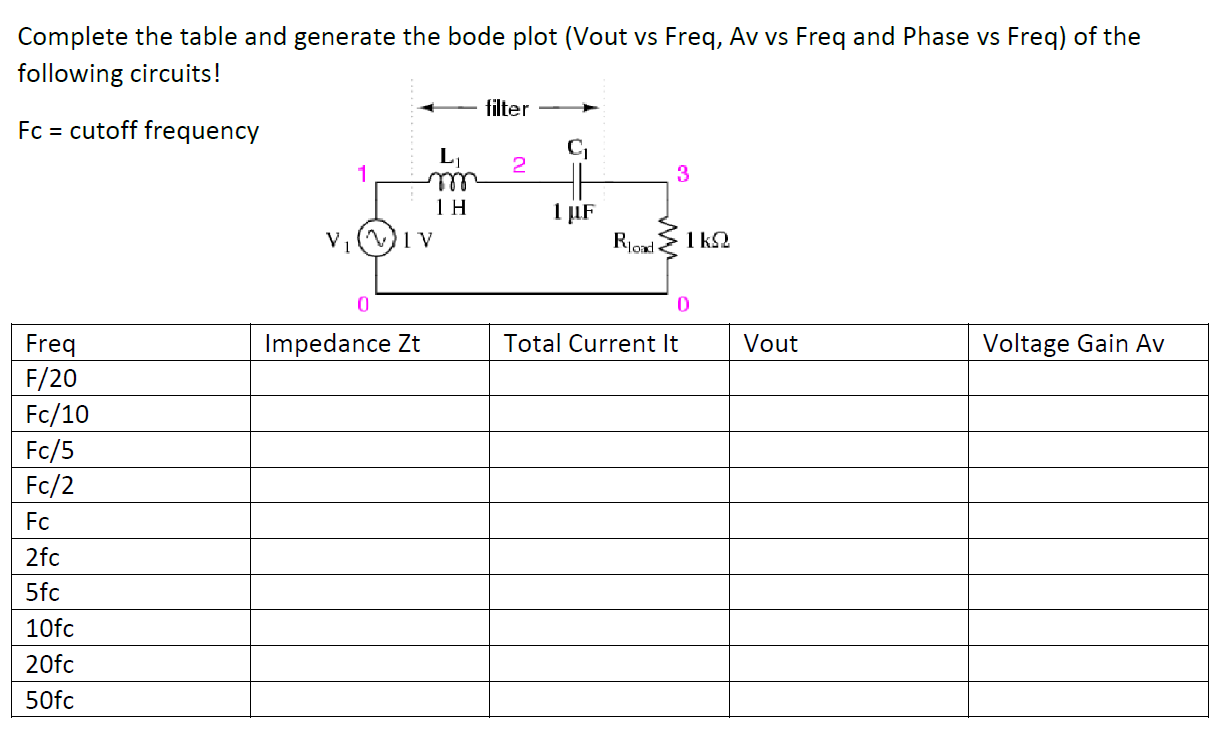

Complete the table and generate the bode plot (Vout vs Freq, Av vs Freq and Phase vs Freq) of the following circuits! filter Fc = cutoff frequency C 1 2 3 m 1 H 1 uF Vi Viv 1 k2 Road 0 0 Impedance Zt Total Current It Vout Voltage Gain Av Freq F/20 Fc/10 Fc/5 Fc/2 FC 2fc 5fc 10fc 20fc 50fc
