The three loads in the circuit in the figure can be described as follows Load 1 is a 290 12 resistor in series with an i

[answerhappygod]

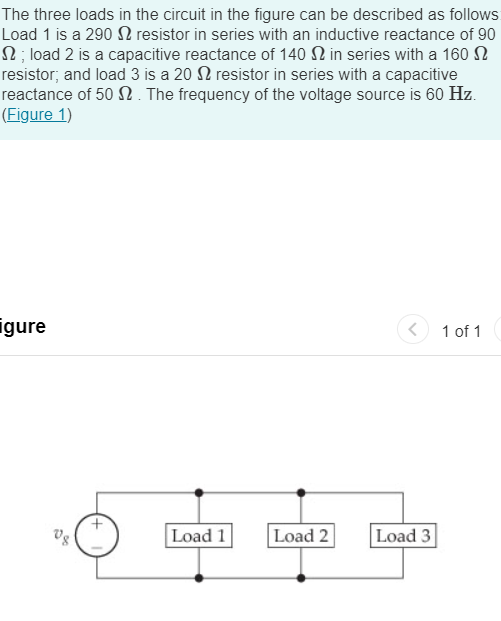

The Three Loads In The Circuit In The Figure Can Be Described As Follows Load 1 Is A 290 12 Resistor In Series With An I 1 (32.28 KiB) Viewed 34 times

The three loads in the circuit in the figure can be described as follows Load 1 is a 290 12 resistor in series with an inductive reactance of 90 22; load 2 is a capacitive reactance of 140 22 in series with a 160 22 resistor, and load 3 is a 20 12 resistor in series with a capacitive reactance of 50 12. The frequency of the voltage source is 60 Hz. (Figure 1) igure < 1 of 1 V8 Load 1 Load 2 Load 3

Part A Give the power factor of load 1. Express your answer using three significant figures. ΟΙ ΑΣΦ | If IT vec ? pf = Submit Request Answer Part B Give the reactive factor of load 1. Express your answer using three significant figures. VO ΑΣΦΙ ! vec ? rf 11

Part C Give the power factor of load 2 Express your answer using three significant figures. V AEDIT ut vec ? pf = Submit Request Answer Part D Give the reactive factor of load 2 Express your answer using three significant figures. || ΑΣΦ | 11 vec ? rf = Submit Request Answer

Part E Give the power factor of load 3. Express your answer using three significant figures. ΟΙ ΑΣΦ | if vec ? pf 11 Submit Request Answer Part F Give the reactive factor of load 3 Express your answer using three significant figures. ΤΕΙ ΑΣφ | 11 | vec ? PER rf = Submit Request Answer

Part G Give the power factor of the composite load seen by the voltage source. Express your answer using three significant figures. V AEO IT vec ? of II Submit Request Answer Part H Give the reactive factor of the composite load seen by the voltage source. Express your answer using three significant figures. ΤΕΙ ΑΣΦ | 11 | vec AEO ? rf =
