(a) The parameters of the transistor in Figure Q3(a) are: VEB = 0.65 V and ß = 80. 15 V 10 kΩ 400 kΩ- 150 kg 5 ΚΩ Figure
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
(a) The parameters of the transistor in Figure Q3(a) are: VEB = 0.65 V and ß = 80. 15 V 10 kΩ 400 kΩ- 150 kg 5 ΚΩ Figure

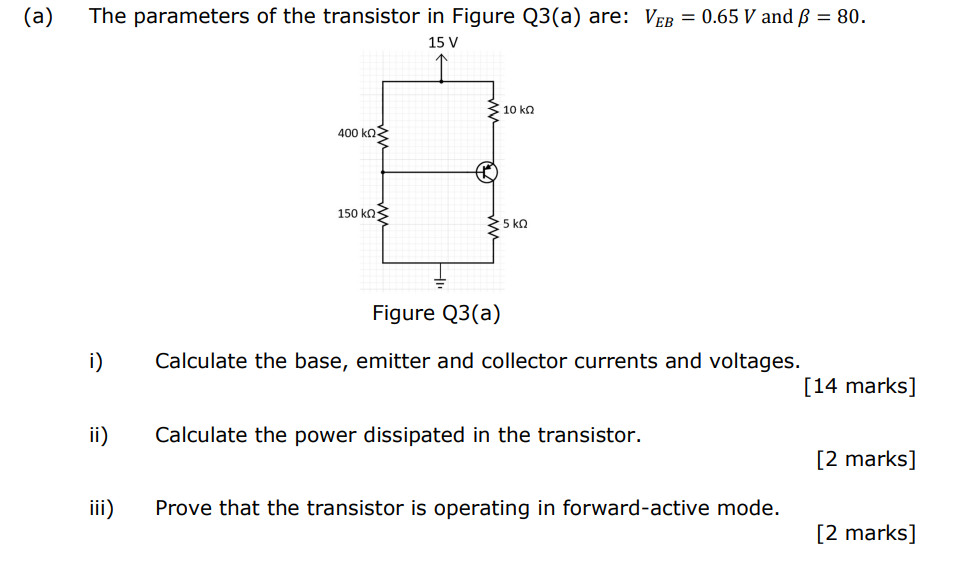

(a) The parameters of the transistor in Figure Q3(a) are: VEB = 0.65 V and ß = 80. 15 V 10 kΩ 400 kΩ- 150 kg 5 ΚΩ Figure Q3(a) i) Calculate the base, emitter and collector currents and voltages. [14 marks] ii) Calculate the power dissipated in the transistor. [2 marks] iii) Prove that the transistor is operating in forward-active mode. [2 marks]
