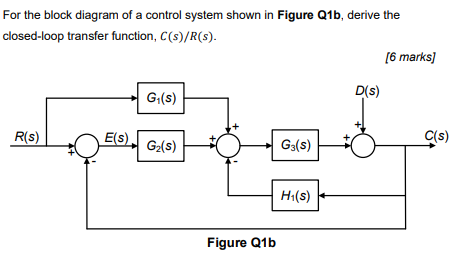

For the block diagram of a control system shown in Figure Q1b, derive the closed-loop transfer function, C(s)/R(s). [6 marks] G(S) D(S) R(s) E(S) C(s) G2(s) G3(S) H1(s) Figure Q1b
