please complete both parts d and e. please show all steps
clearly. will thumbs up if correct. thank you.
For question e, A = 2, B = 3
Please Complete Both Parts D And E Please Show All Steps Clearly Will Thumbs Up If Correct Thank You For Question E 1 (23.04 KiB) Viewed 38 times
Please Complete Both Parts D And E Please Show All Steps Clearly Will Thumbs Up If Correct Thank You For Question E 2 (32.6 KiB) Viewed 38 times

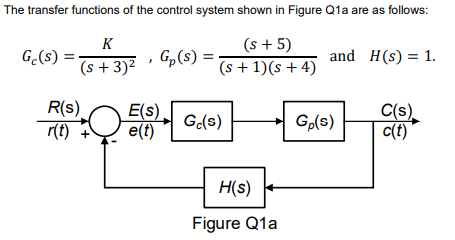

The transfer functions of the control system shown in Figure Q1a are as follows: G(S) K (s + 3)2 (s +5) Gp(s) = (s + 1)(8 +4) and H(s) = 1. R(s) r(t) + E(S). e(t) Gc(s) Ge(s) C(s) c(t) H(S) Figure Q1a

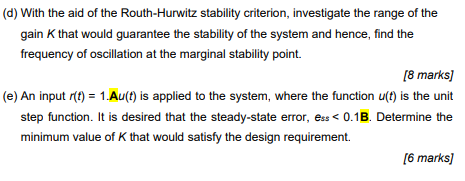

(d) With the aid of the Routh-Hurwitz stability criterion, investigate the range of the gain that would guarantee the stability of the system and hence, find the frequency of oscillation at the marginal stability point. [8 marks) (e) An input r(t) = 1.Au(t) is applied to the system, where the function u(t) is the unit step function. It is desired that the steady-state error, ess < 0.18. Determine the minimum value of that would satisfy the design requirement. [6 marks]
