Use source transformations to find the Norton equivalent circuit
with respect to the terminals aa, bb for the circuit
shown in (Figure 1). Suppose that RRR =
40 Ω.
Use Source Transformations To Find The Norton Equivalent Circuit With Respect To The Terminals Aa Bb For The Circuit Sh 1 (34.17 KiB) Viewed 47 times

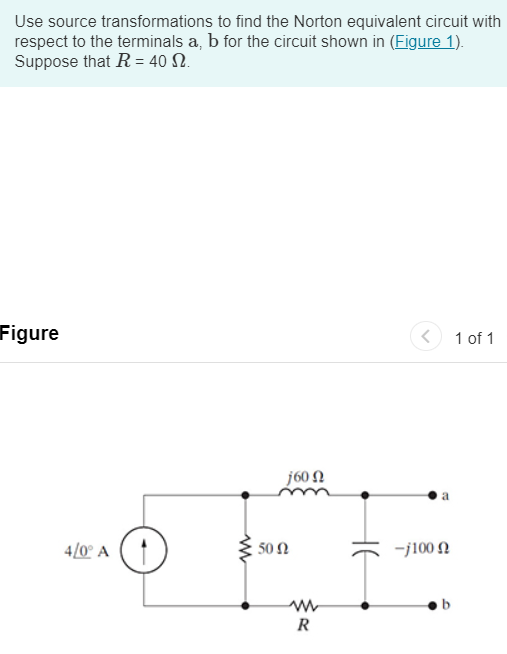

Use source transformations to find the Norton equivalent circuit with respect to the terminals a, b for the circuit shown in (Figure 1). Suppose that R = 40 12. Figure 1 of 1 j60 Ω w 4/0ºA (1 50Ω -j100 Ω w R
Part A Find the value of ZN Express your answer in ohms to three significant figures. Enter your answer in rectangular form. IVO A o 11 ΑΣΦ| | vec ? ZN = 12 Submit Request Answer Part B Find the value of IN Express your answer in amperes to three significant figures. Enter your answer in rectangular form. VO ΑΣΦ If vec ? IN = A
