(d) The function of a logical circuit is shown in the truth table (Table Q1(d)). Reduce the function specified in truth
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
(d) The function of a logical circuit is shown in the truth table (Table Q1(d)). Reduce the function specified in truth

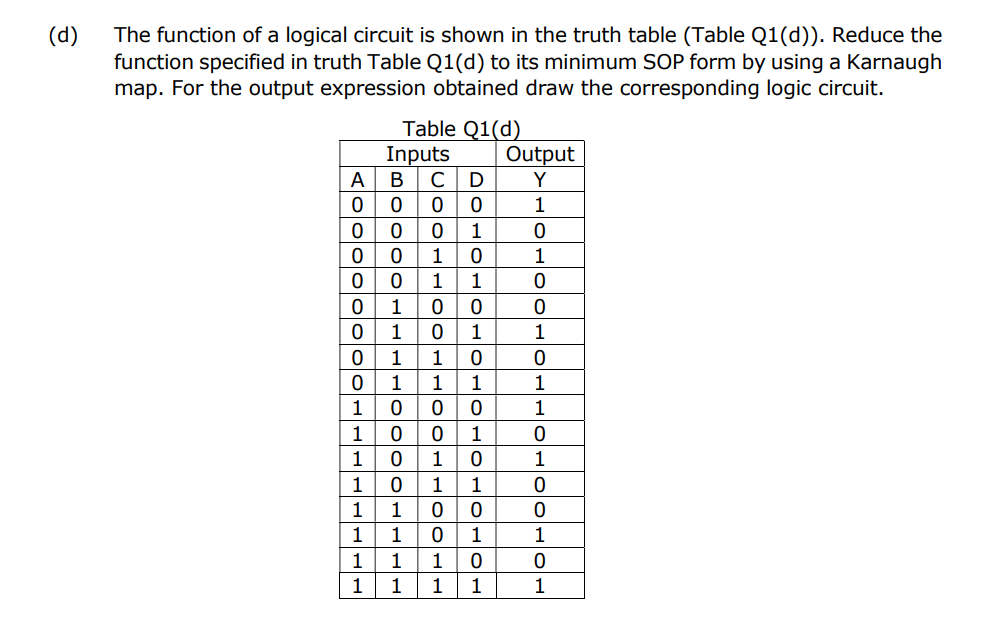

(d) The function of a logical circuit is shown in the truth table (Table Q1(d)). Reduce the function specified in truth Table Qi(d) to its minimum SOP form by using a Karnaugh map. For the output expression obtained draw the corresponding logic circuit. A 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 Table Qi(d) Inputs Output B C D Y 0 0 0 1 0 0 1 0 0 1 0 1 0 1 1 0 1 0 0 0 1 0 1 1 1 1 0 0 1 1 1 1 0 0 0 1 0 0 1 0 1 0 1 1 1 1 1 1 1 1 0 0 1 1 1 1 هاهارابرا old TTT OO-
