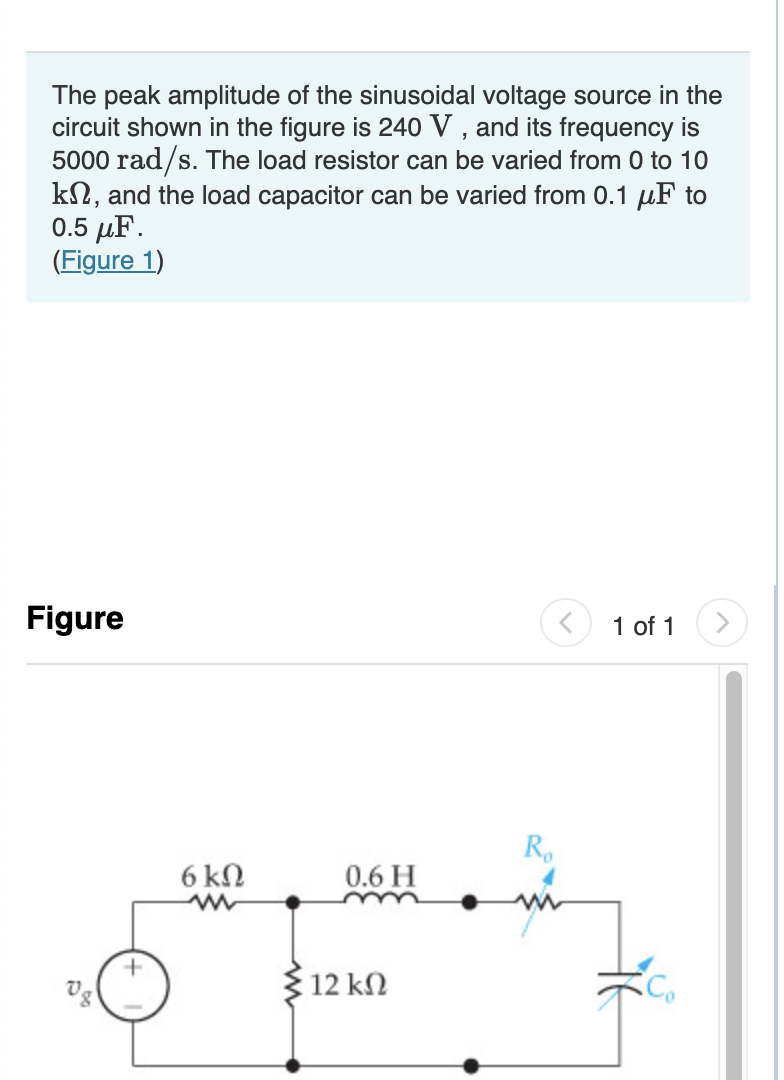

The Peak Amplitude Of The Sinusoidal Voltage Source In The Circuit Shown In The Figure Is 240 V And Its Frequency Is 5 1 (99.12 KiB) Viewed 29 times
The peak amplitude of the sinusoidal voltage source in the circuit shown in the figure is 240 V , and its frequency is 5000 rad/s. The load resistor can be varied from 0 to 10 k12, and the load capacitor can be varied from 0.1 uF to 0.5 uF. (Figure 1) Figure 1 of 1 R. 6 kΩ 0.6 H 1 08 12 k12 C.
v Part A Determine the settings of R. and C, that will result in the most average power being transferred to Ro. Find R. Express your answer to three significant figures and include the appropriate units. ► View Available Hint(s) 9 μΑ ? Value R. = Units
Part B Find Co. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) uả ? 0.6667 C. uF Submit Previous Answers X Incorrect; Try Again; 2 attempts remaining
